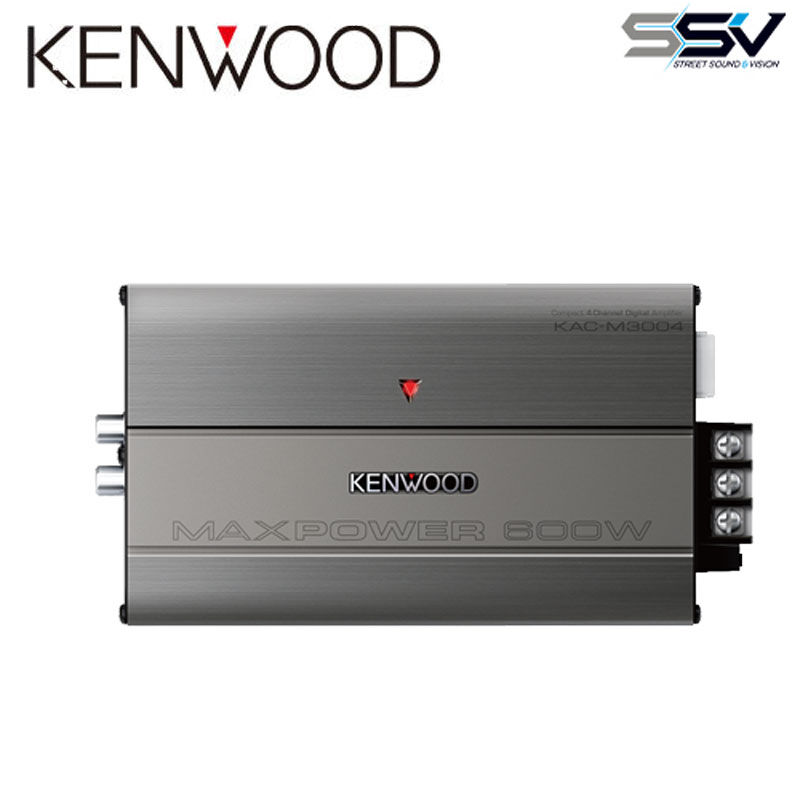

Kenwood KAC-M3004 Compact 4 Channel Digital Amplifier

: RMS POWER Output 4Ω: 50W x 4
RMS POWER Output 2Ω: 75W x 4
RMS POWER Output Bridged: 150W x 2
Dimensions(WxHxD): 165mm x 45mm x 99mm
Singal Sensing Turn-on
Conformal Coating *1

*1: Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

: Many of today’s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOOD’s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.

Title	Compact 4 Channel Digital Amplifier
Amplifier Type	Class D
Maximum Power Output	600W
Specifications	Signal to Noise Ratio	89dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20Hz-20kHz (+0dB, -1dB)
	Input Impedance	10k ohm
	Speaker Impedance	4Ω (2Ω to 8Ω allowable)
	Bridged connection	4Ω to 8Ω allowable
Audio Section	Low-Pass Filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
	High-Pass Filter	Built in Variable Low-Pass Filter (50Hz-200Hz, -12dB/oct)
	Filter Selector 1	LPF-OFF-HPF
	RCA Input Sensitivity	0.2 V - 5.0 V
	Speaker Level Input Sensitivity	4.0 V - 12.0 V
Terminals	Battery & Ground	Screw Type Terminal Block (Ni) (M4)
	Speaker Output	MOLEX Connector with AWG16 200mm Wire
	Line In	RCA (Ni)
General	Dimensions(WxHxD)	165mm x 45mm x 99mm
	Weight(kg)	0.76kg
	Operating Voltage	14.4V（11-16V allowable）
	Current Consumption	22 A
Key Features	CEA-2006 Compliant Class D 2 Ohms Load Capability Speaker Level Input Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design
Others	Triangle Indicator

(KAC-M3004)
