Kenwood KFC-PS3017W PS-series 30cm subwoofer

Kenwood KFC-PS3017W PS-series 30cm subwoofer

SKU:KFC-PS3017W

$149.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature



KFC-PS3017W

PS-series 30cm subwoofer

This 30cm Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control. The X-Motif Cap (Injection Molded Polypropylene) controls resonance frequency and cut away unnecessary high frequency sound to deliver powerful, solid bass.

Oversized Dimension

Heat dissipation technology

Key Features

300mm Polypropylene Cone (PP Cone)
400 Rated/RMS Input Power
High-ridged Two-piece Diaphragm for solid bass
X-motif cap Technology for resonance control
Single, multi-layered, voice coil.
Aluminum bobbin for better thermal conductivity
Airflow control for optimal heat radition
Stress controlled spider
Push-terminals for easy connection
Sealed/Ported installation capabillity

Speaker Features

Speaker Size 300mm
Oversized Dimension Yes
Speaker Cone Design Diamond-Array pattern
Magnet Type Ferrit
Voice-coil single, multi-layer voice coil
Terminals Push Type
Spider Stress controlled spider
Bottom-Yoke Fully closed bottom yoke
Heat dissipation technology Airflow control
Installation Capabillity Sealed / Ported

Speaker/woofer Specifications

Peak Input Power 2000W
Rated Input Power 400W
Woofer Cone material Polypropylene (PP) Cone
Center Cap Type x-motif cap
Speaker Basket Steel
Speaker Surround Foam
Spider Type Stress controlled Spider
Sensitivity 85dB/W/m
Frequency Response 29Hz ~ 300Hz
Speaker Impedance 4Ω

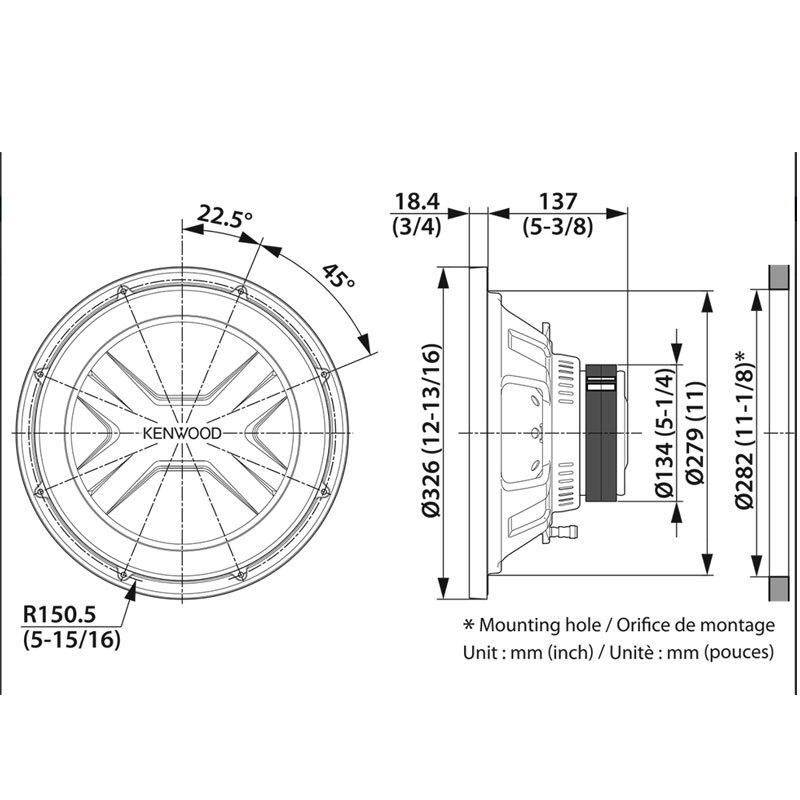

Dimensions (W x H x D) 326 x 326 x 155.4mm
Mounting Depth 137mm
Mouting Hole Diameter Ø 280mm
Speaker Weight 4200gr

Subwoofer Parameters

Nominal impedance (Z) 4Ω
DC resistance (Re) 3.7Ω
Resonant frequency (FSO) 24.4Hz
Mechanical Q factor (QMS) 6.79
Electrical Q factor (QES) 0.52
Total Q factor (QTS) 0.483
Voice coil inductance (LBM) 2.04mH
Voice coil diameter (d) 50mm
Force factor (BL) 12.9T/m
Peak excursion Xmax 5.9mm
Moving mass (MMS) 152gr.
Volume accoustic compliance (VAS) 104liter
Piston Area (SD) 0.0512m²
Displacement 1.2cc

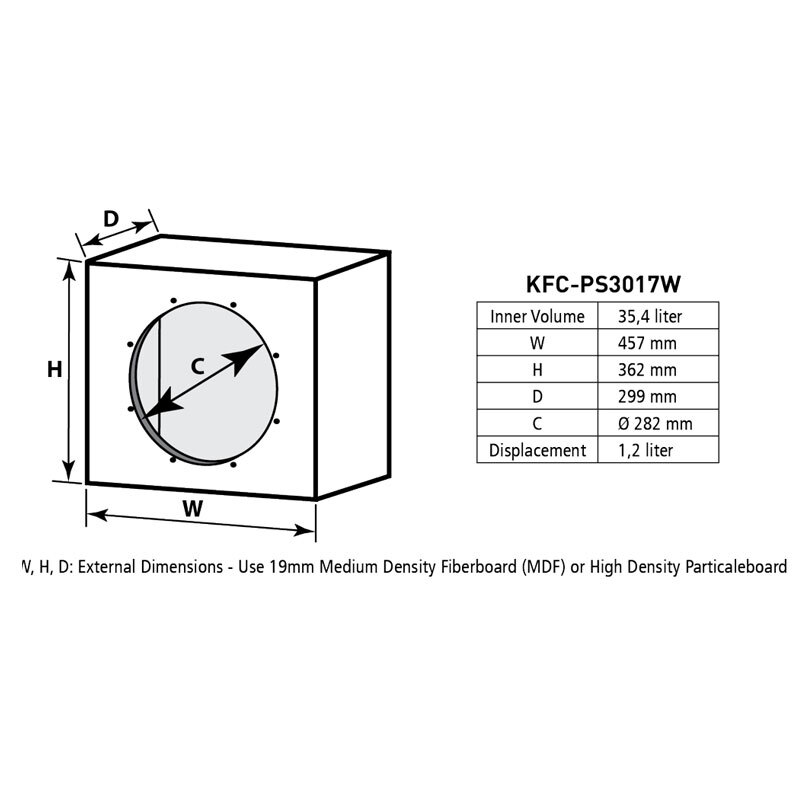

Sealed box volume 35.4liter
Sealed Box Dimensions 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD)

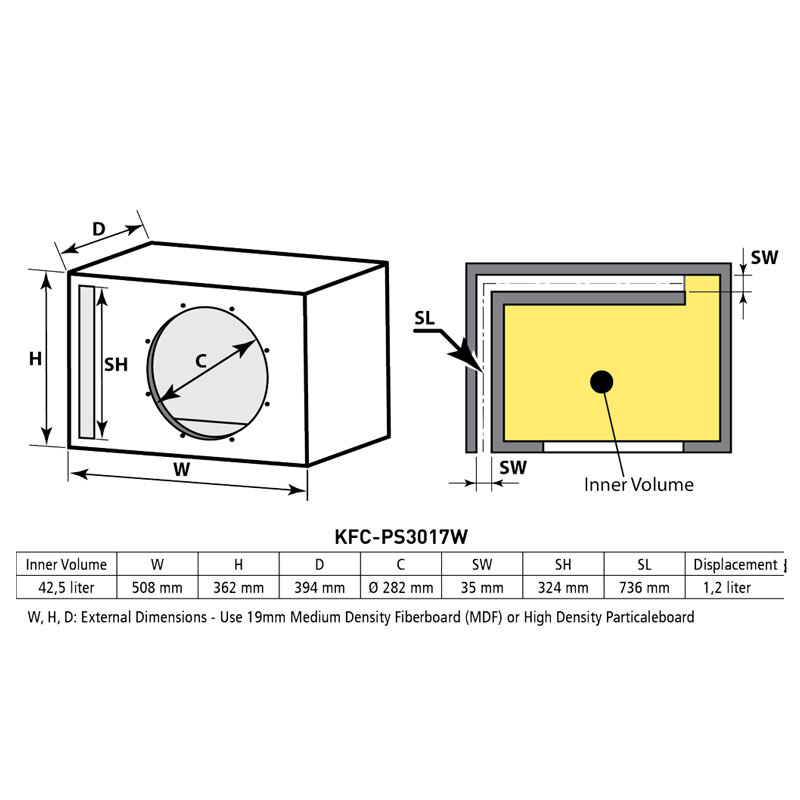

Vented box volume 42.5liter
Vented Box Dimensions 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD)
Port dimensions (labyrinth) (W x H x L) 35 x 324 x 736mm

(KFC-PS3017W)
