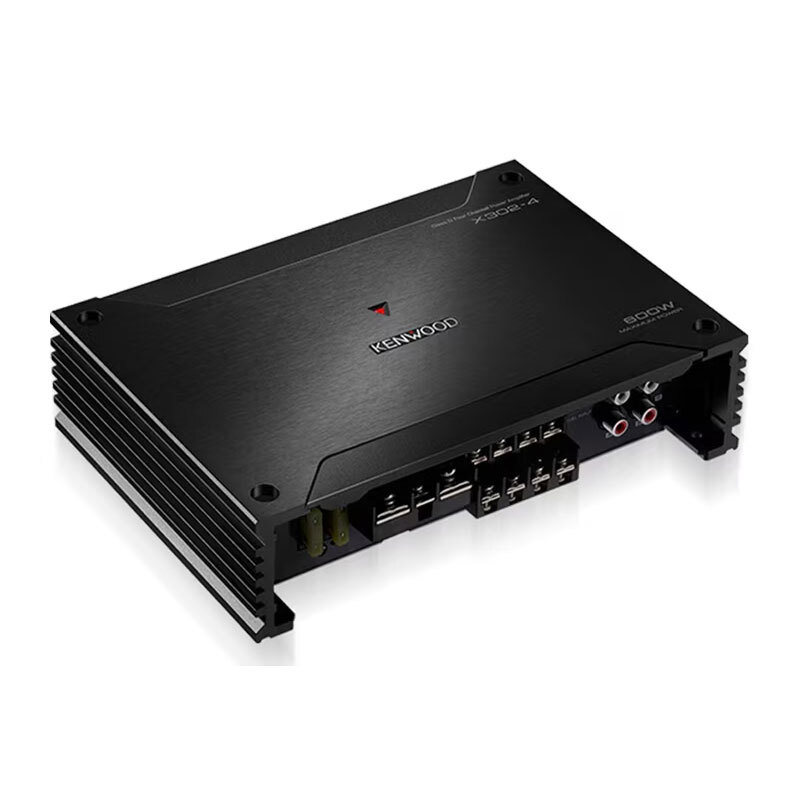

Kenwood X302-4 Class D 4-Channel Power Amplifier

X302-4Class D 4-Channel Power Amplifier

Zoom

• Max Power 600W
• RMS 50W x4 (4Ω)
• RMS 75W x4 (2Ω)
• Size (inch) (W)213mm x (H)53mm x (D)149 mm
• Variable High & Low Pass Filter
• Bass Boost

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

Smooth waveforms
Loss of smoothness
Fine waveforms

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.

One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.

• ①Fuse (20A x2)
• ②Battery terminal (POWER IN BATT.)
• ③Power control terminal
• ④Ground terminal (GND)

• ⑤Speaker output terminals (A.ch/B.ch)
• ⑥Speaker level input terminal
• ⑦Line in terminal

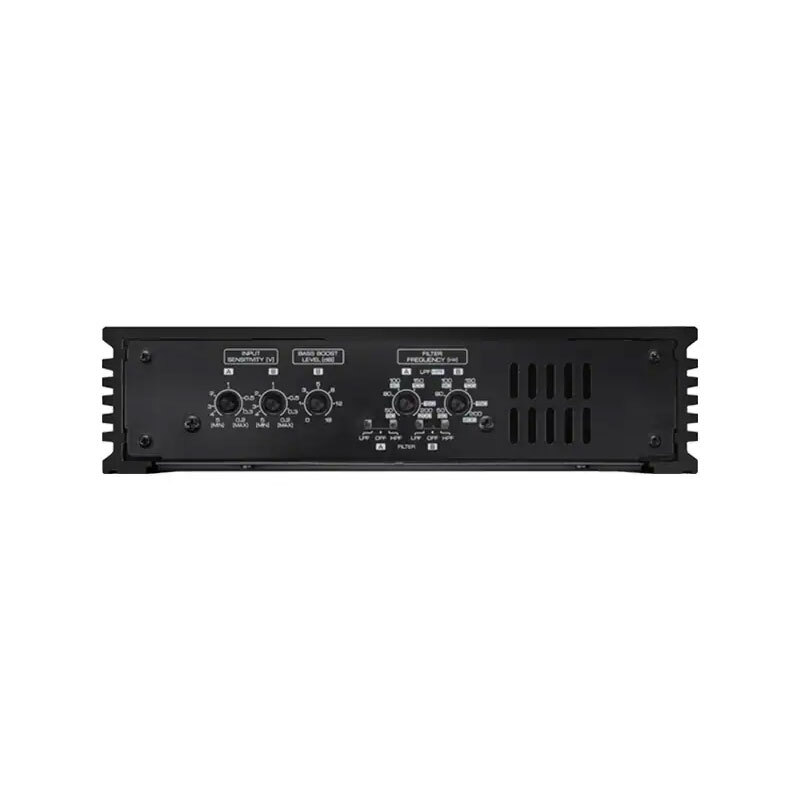

Variable Gain Circuit

Improved Signal to Noise Ratio

• ⑧Input sensitivity control（A.ch/B.ch）
• ⑨Bass Boost Level control (B.ch）

• ⑩Filter switch (A.ch/B.ch)
• ⑪Filter frequency control (A.ch/B.ch)

Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

General Features
