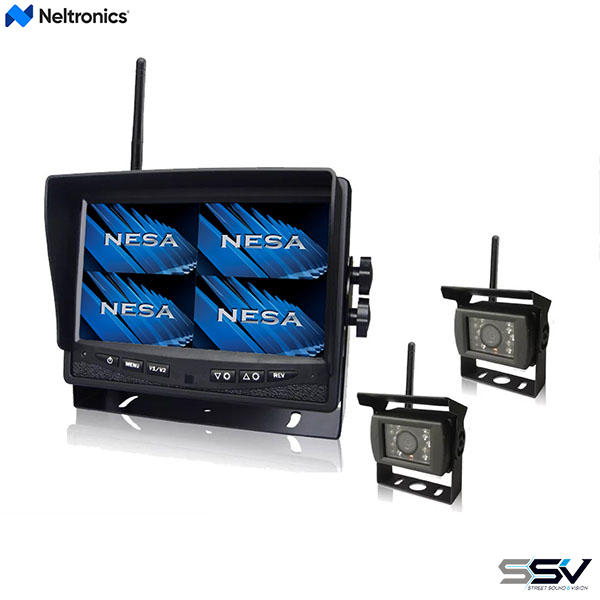

Neltronics CK-700W2HD 2.4GHz Wireless 7” Monitor with 2x HD Cameras

With plenty of range, even for trucks, the CK-700W2HD wireless monitor and camera kit makes installation so simple. This kit is complete with a 7? monitor and 2x 960p HD cameras, cameras can be shown in split screen. Both the monitor and cameras need to be wired for power, but no cables are needed to connect them over distance. Perfect for trailers, as there is no need to thread wires from the front of the vehicle to the rear of the trailer. The wireless range has been tested with a line of sight and no obstruction of over 100m, 50m range is most realistic through steel structure like a vehicle’s body work. The 2.4GHz transmitter and receiver provides heaps of range with no interference.

The monitor can only use up 2 cameras, additional cameras cannot be added.

SPECIFICATIONS

Monitor

• 7” LED backlit LCD screen
• 2CH video (split view)
• Resolution: 1024 x 600
• Contrast: 500:1
• Brightness: 350cd/m2
• Viewing angle U:50° D:70° L/R:70°
• System: NTSC
• Shock resistant, to 100G
• Operation temp: -30°~+70°
• Removable sunshade
• Power: 10-36v

Cameras

• Resolution: HD 960p (1292 x 968)
• View angle: 120°
• Minimum light: 0 Lux
• Water resistant rating: IP69K
• 1x Trigger for priority camera selection
• Power: 10-36v

Wireless System

• Distance: 150m (unobstructed line of sight) With obstructions: approx 50m
• Frequency: 2.4GHz-2.48GHz
• S/N ratio: 48db
