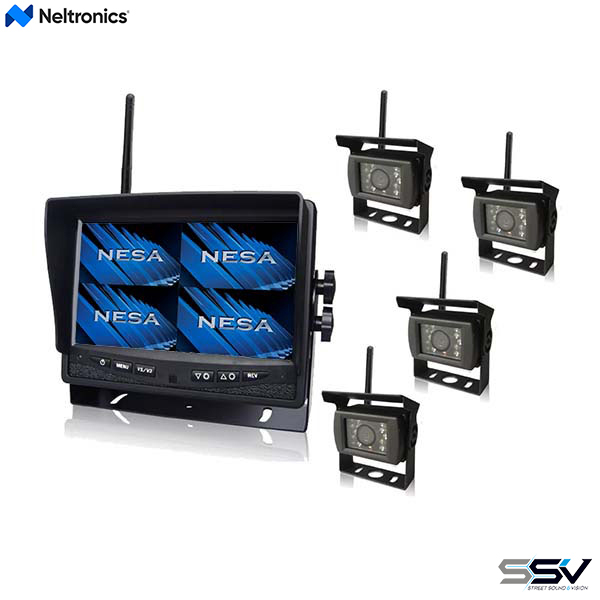

Neltronics CK-700W4HD 2.4GHz Wireless 7” AHD Quad View Monitor with 4x AHD Cameras

SKU:CK-700W4HD

$1,200.00



In Stock


Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

With plenty of range, even for trucks, the CK-700W4HD wireless monitor and camera kit makes installation so simple. This kit is complete with a 7” AHD monitor and 4x AHD cameras. Both the monitor and cameras need to be wired for power, but no cables are needed to connect them over distance.

Perfect for trailers too, as there is no need to thread wires from the front of the vehicle to the rear of the trailer. The wireless range has been tested with a line of sight and no obstruction of over 150m, 50m range is most realistic through steel structure like a vehicle’s body work. The 2.4GHz transmitter and receiver provides heaps of range with no interference.

SPECIFICATIONS

Monitor

  • 7” LED backlit LCD screen
  • 4CH video (split view)
  • Resolution: 1024 x 600
  • Contrast: 500:1
  • Brightness: 350cd/m2
  • Viewing angle U:50° D:70° L/R:70°
  • System: NTSC
  • Shock resistant, to 100G
  • Operation temp: -30°~+70°
  • Removable sunshade
  • Power: 10-36v

Cameras

  • Resolution: HD 960p (1292 x 968)
  • View angle: 120°
  • Minimum light: 0 Lux
  • Water resistant rating: IP69K
  • 1x Trigger for priority camera selection
  • Power: 10-36v

Wireless System

  • Distance: 150m (unobstructed line of sight) With obstructions: approx 50m
  • Frequency: 2.4GHz-2.48GHz
  • S/N ratio: 48db

(CK-700W4HD)
