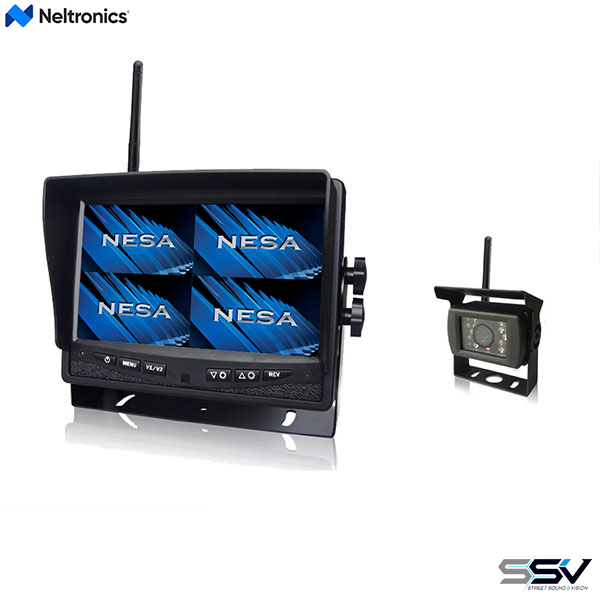

With plenty of range, even for trucks, the CK-700WHD wireless monitor and camera kit makes installation so simple. This kit is complete with a 7? monitor and 1x 960p HD cameras. Both the monitor and camera need to be wired for power, but no cables are needed to connect them over distance.
Perfect for trailers, as there is no need to thread wires from the front of the vehicle to the rear of the trailer. The wireless range has been tested with a line of sight and no obstruction of over 100m, 50m range is most realistic through steel structure like a vehicles body work. The 2.4GHz transmitter and receiver provides heaps of range with no interference.
The monitor can only use 1 cameras, additional cameras cannot be added.
SPECIFICATIONS
Monitor
- 7 LED backlit LCD screen
- Resolution: 1024 x 600
- Contrast: 500:1
- Brightness: 350cd/m2
- Viewing angle U:50° D:70° L/R:70°
- System: NTSC
- Shock resistant, to 100G
- Operation temp: -30°~+70°
- Removable sunshade
- Power: 10-36v
Camera
- Resolution: HD 960p (1292 x 968)
- View angle: 120°
- Minimum light: 0 Lux
- Water resistant rating: IP69K
- 1x Trigger for priority camera selection
- Power: 10-36v
Wireless System
- Distance: 150m (unobstructed line of sight) With obstructions: approx 50m
- Frequency: 2.4GHz-2.48GHz
- S/N ratio: 48db
(CK-700WHD)
