Neltronics CK-CARAVANKIT4 4.2? Monitor/Rear View Mirror Caravan Kit

SKU:CK-CARAVANKIT4

$840.00



In Stock


Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

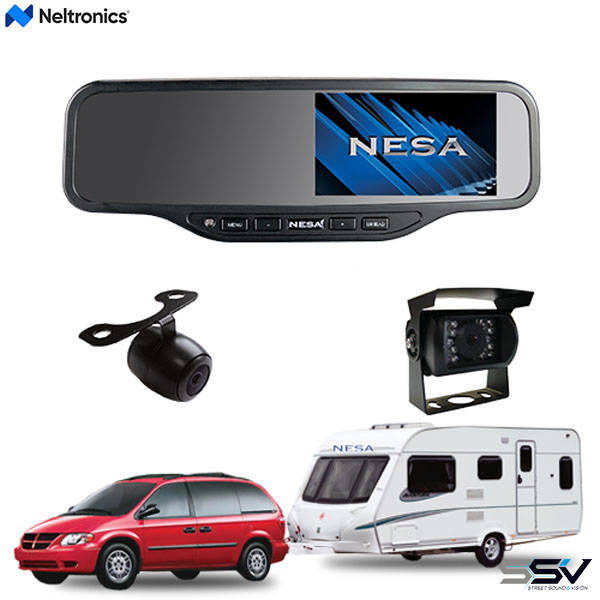

The NESA Caravan Kit is a well thought-out safety, towing and reversing aid which allows complete peace of mind for your caravan trip. The kit includes a 4.2” (NSR-42D) rear view mirror monitor, a 170 degree mini colour camera for the rear of the car, a heavy duty 120 degree waterproof colour camera for the caravan and curly cord kit for quick connection.



Driving around town you have a high quality screen and reversing camera. Once it’s time to hit the road on your caravan trip, simply hook up the caravan, plug in the curly cord & your rear view moves to the back of the caravan.  Depending on your choice of power feed, the car camera can also be configured to monitor the caravan whilst towing. Spare wires can be accessed in the curly cord sockets for additional accessories or cameras if required or advanced configurations, such as charging batteries in the caravan.



SPECIFICATIONS

NSR-42D – 4.2? Rear View Mirror/Monitor

  • 4.2 Rear Mirror Monitor
  • 12V & 24DC
  • Resolution: 320 x 234
  • Contrast Ratio: 300
  • System: PAL/NTSC
  • High-low Voltage Protection
  • Short Circuit Protection
  • Anti-glare Treatment
  • Park assist lines for easy parking
  • Signal Sense Power On
  • Built-in speakers (2)
  • Bracket or strap on mounting
  • Will suit a large variety of vehicles
  • Dimensions: 276.2mm x 91mm x 30mm
  • Operating temperature range: -20°C ~ +70°C
  • Monitor bracket & silicon tape included
  • 5m Extension cable



Mini CCD Camera

  • 1/3 CCD 170 degree Colour Camera
  • Resolution: 480 (TV Lines)
  • System: NTSC/PAL
  • Min Illumination: 0.2Lux
  • Power Requirement: 12V DC
  • Video Output: 1.0vp-p.750hm
  • IP Rating: IP67-68



CCD-073 – Heavy Duty Camera

  • Fully waterproof
  • Weather resistant housing
  • Day/night sensor for auto adjustment
  • View angle: 120º diagonal
  • IR enhanced for night vision
  • IR distance: approx.10m
  • Infared LED light: 18
  • Selectable reverse or forward image
  • Impact resistant
  • Built-in microphone



Curl-101 – Curl Cord Kit

  • Suitable for trailers, vans and boats
  • Suits all cameras systems
  • Includes mounting plates and male sockets
  • Includes two 6 metre RCA cables

(CK-CARAVANKIT4)
