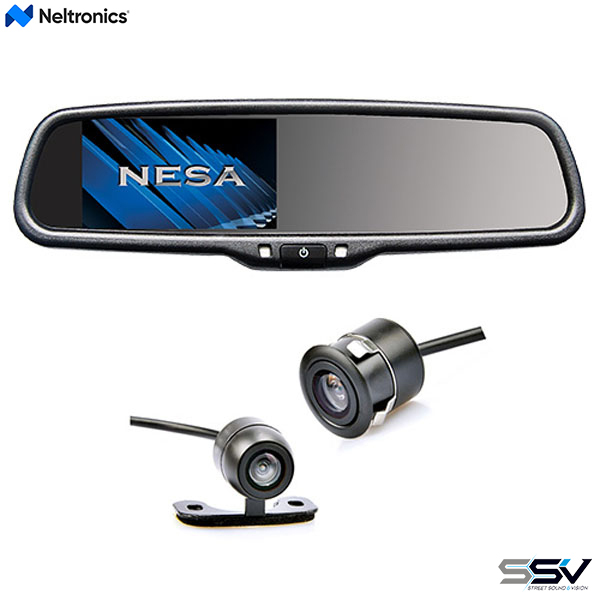

Neltronics CK-CCD-D43LAD Auto-Dimming Mirror & Dual Mount Camera Kit

Kit includes NSR-43LAD mirror & CCD-DUAL170 camera.

The NSR-43LAD is a replacement mirror monitor with a built in 4.3” LCD monitor. In normal use the mirror looks standard until the car is placed in reverse & the image appears. 2 inputs allows for multiple cameras or RCA sources to connect. Auto-dimming reduces glare from headlights at night. 2 inputs allows for multiple cameras or RCA sources to connect. Included bracket is a universal mount to fit most vehicles. Optional vehicle specific mounting brackets available – Toyota, Holden, Ford, Honda etc. Many brackets available.

The CCD-DUAL170 is a versatile CCD micro camera supplied with 2 heads to allow for a choice of mounting options. The butterfly mount is used to screw to number plates or under tailgate handles while the spare head allows you to flush mount into the bumper. High resolution sensor with 750 TV lines and 976 x 592 pixels. The camera cable connects via a mini plug to allow threading through small drill holes.

SPECIFICATIONS

Mirror:

• LCD profile wide screen ratio: 16:9
• NTSC/AUTO/PAL
• Brightness (cd/m2) : 200
• Video Inputs : RCA x 2
• LCD position: Left
• Power requirement: 12V DC
• Power consumption:
• Operating temperature range:  -20°C ~ +70°C
• Storage temperature range:  -30°C ~ +80°C
• Dimensions: 270 mm X 82mm X 43mm
• Approx weight:  490g (including bracket)
• Monitor bracket & silicon tape included
• 2.5m extension cable

Camera:

• CCD sensor
• View Angle: 170°
• Horizontal Resolution: 750 TV lines
• Effective Pixels:  976 x 592
• TV system: NTSC
• Minimum Illumination: 0.1Lux
• White Balance: Auto
• Waterproof: IP67
• Power: 12vDC
• 6m cable with mini plug-RCA included
