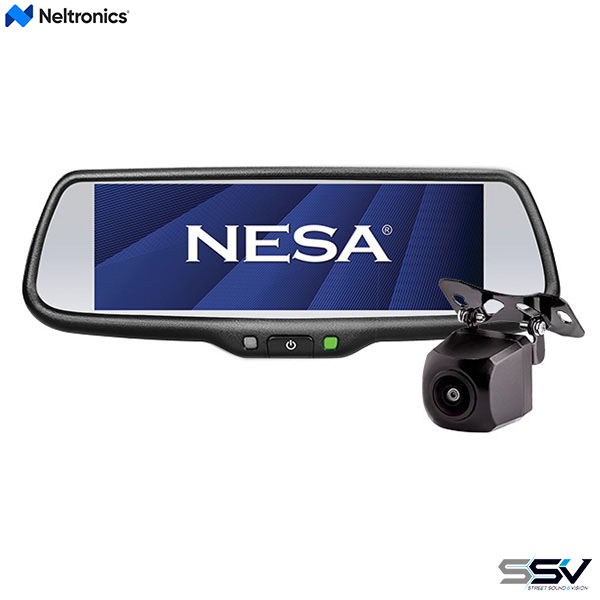

Neltronics CK-HD17H73AHD 7.3” HD Touchscreen Rear View Mirror with HD Camera Kit

The NSR-73AHD is an OEM style rear view mirror with an embedded super wide 7.3” Full HD 1080p compatible touchscreen display. The display is detailed and clear with automatic screen brightness that adjusts with the ambient light. Designed to replace the factory windscreen mounted rear view mirror, includes a universal mounting bracket with vehicle specific mounting brackets available.

Compatible with a wide range of cameras, including standard CVBS, 720p, 960p and 1080p AHD cameras. The 3 camera inputs (rear/left/right) each have their own individual triggers (reverse gear or indicators) and a mixture of different resolution cameras can be used together. Access the menu via the touchscreen to set each camera’s own individual settings for brightness, contrast, colour and guide lines positioning.

The CCD-HD17H is a premium quality, high resolution mini box camera with 1/4” CMOS sensor. Can be used as an AHD 720p camera or switched to standard mode producing 700 TV lines. The CCD-HD17H has a view angle of 170°, adjustable tilt, universal butterfly mount and a micro connector for easy installation and distance guidelines when used in mirror image mode for reversing (guidelines not visible when used in normal front facing mode). The CCD-HD17H has automatic white balance, gain control and exposure to provide a clear image in all types of lighting conditions. All contained in a tough IP67 waterproof casing.

Vehicle Specific Mounts:

More mounts available on request, If your vehicle is not listed, contact us.
