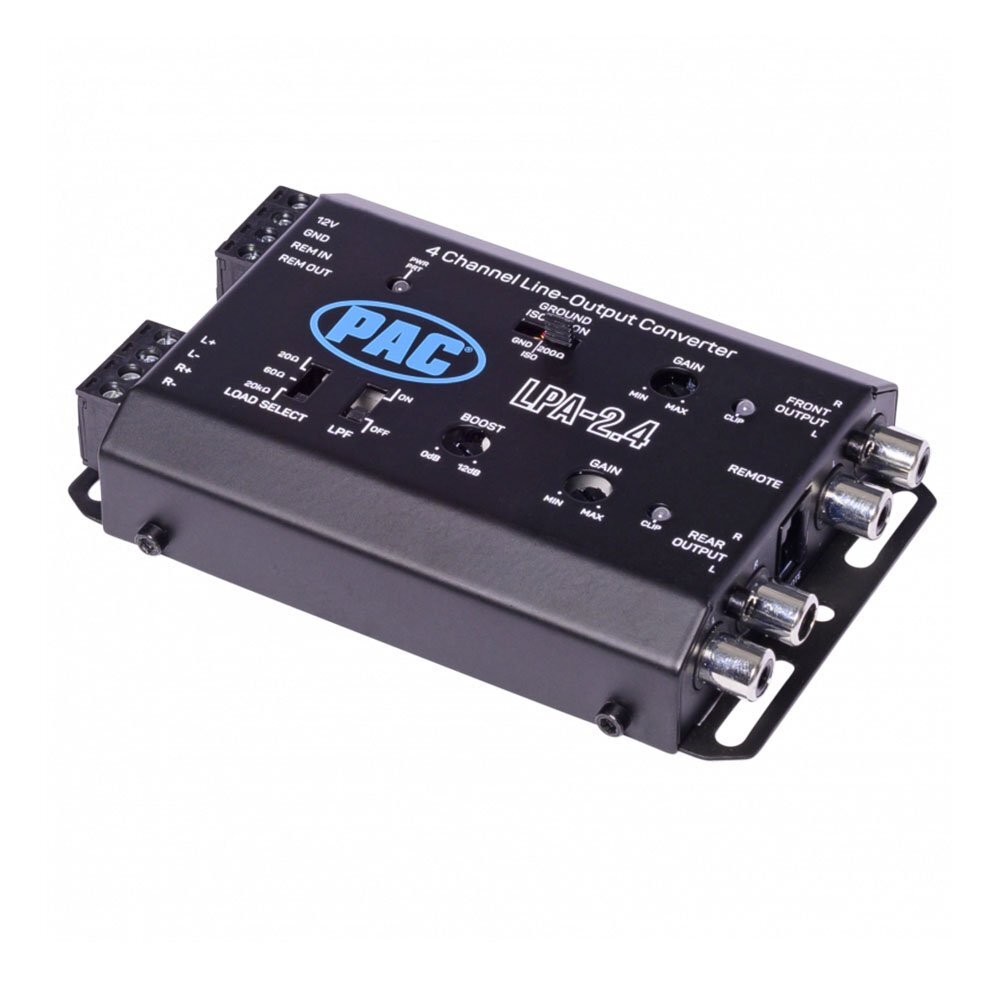

Pac LPA-2.4 Active 4CH Line Output Converter with Auto Turn-on

The LOCPro Advanced series of line out converters enable adding an aftermarket amplifier to your factory infotainment audio system with the reliability of PAC

The PAC Legacy Continues

For over 40 years, PAC USA have created and produced vehicle interfaces for audio integration with OEM Radio systems. The New LOCPro Advanced continues this legacy for your audio aspirations.

Universal Application

The LOC PRO Advanced can be sued to add amplifiers to a factory audio system that does not have RCA outputs or when replacing the OEM radio and wanting to retain older analogue amplified systems.

Features Include:

• Variable Gain Controls
• Clipping Indicators
• Selectable Ground Isolation
• Load Select Feature
• Remote Turn On

All About That Bass

With its built in selectable filter, the LPA-2.4 allows for 250Hz low pass filter of the rear RCA output channels.

A variable 45Hz bass boost EQ is adjustable when the LPF is enabled up to 12dB for maximum bass output.

2 IN = 4 OUT

The PAC LPA-2.4 features great flexibility for installations with unique output options.

With 2 channel high level (speaker) input, the LPA-2.4 comes with a pair of 2 channel RCA outputs for a total of 4 channels.

Great when using

• Mono block and 2 channel amplifier
• 4 channel amplifier where fading isn’t a requirement.


What Do You Get?

The LPA-2.4 includes

• Line Out Converter
• 2x Connector Bricks
• Mounting Screws
• Instruction Card

Features

• 2CH High Level Input (40v Maximum @ 20k Ohm)
• 4CH Low Level (RCA) Output
• Selectable 250Hz Low Pass Filter
• Adjustable 0dB -12dB Bass Boost
• Single Stereo Gain Pot Control Per Output
• Selectable Grounding Options (Common Ground, Isolated or 200Ohm)
• Selectable Input Load Level (20ohm, 60Ohm or 20k Ohm)
• Clip Indicator
• Automatic Remote Turn-On (Remote input and DC)
• Up to 9.5v RCA Preout
• Removable Quick Connect Brick Connectors
• Wide Range DC Offset
• Optional Remote Control (NOT INCLUDED)
