Phoenix Gold MX GM/Holden Speaker Pack

Designed for easy installation, the PGMXGM01 speaker pack

makes upgrading your factory GM/Holden speakers easy.



Not Your Ordinary Speaker

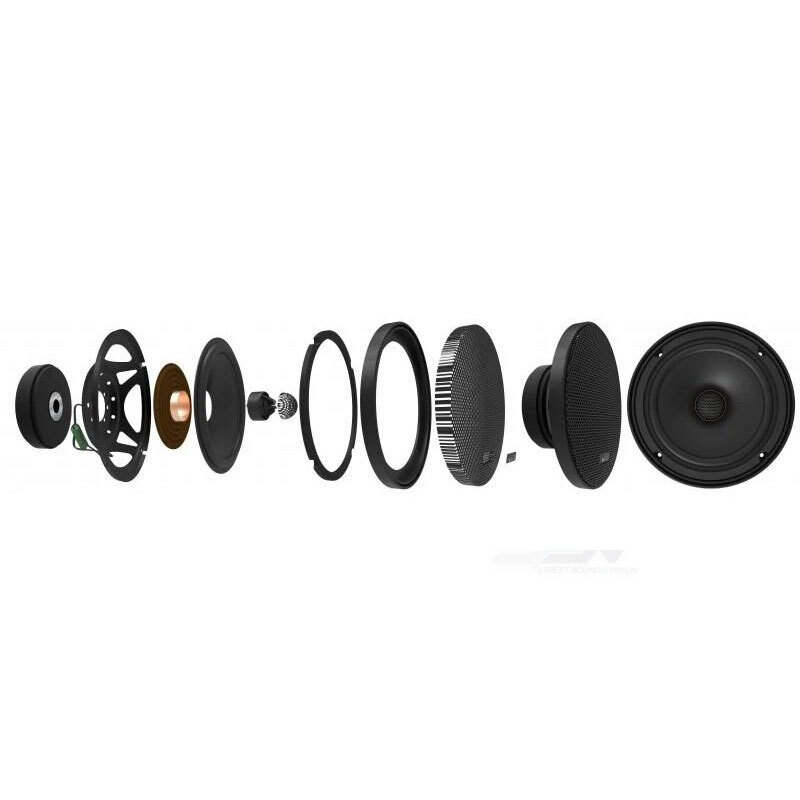

With its 'Dual Concentric Coaxial Design', the MX Series allows sound to emanate from a single point eliminating cancellation and phase issues found in most common 'Coaxial Speaker' design.

Each speaker is fitted with a unique waveguide focusing the tweeter providing a smooth blend of mid-range and higher frequencies for a very even sound not found in classic 2-way coaxial speaker design.

Great In Factory Applications

With all the combined speaker design cues of the MX Series, application into factory speaker vehicle locations are where it really shines.

As vehicle speaker locations are not always optimal, the unique concentric speaker setup offers amazing off-axis performance creating an engrossing listening experience with detail, impact and tonality.



Easy Installation

With the included vehicle specific spacer ring, you are able to install your new Phoenix Gold speakers with ease.

Plug and Play between the new speaker and the vehicle harness with the included harness.

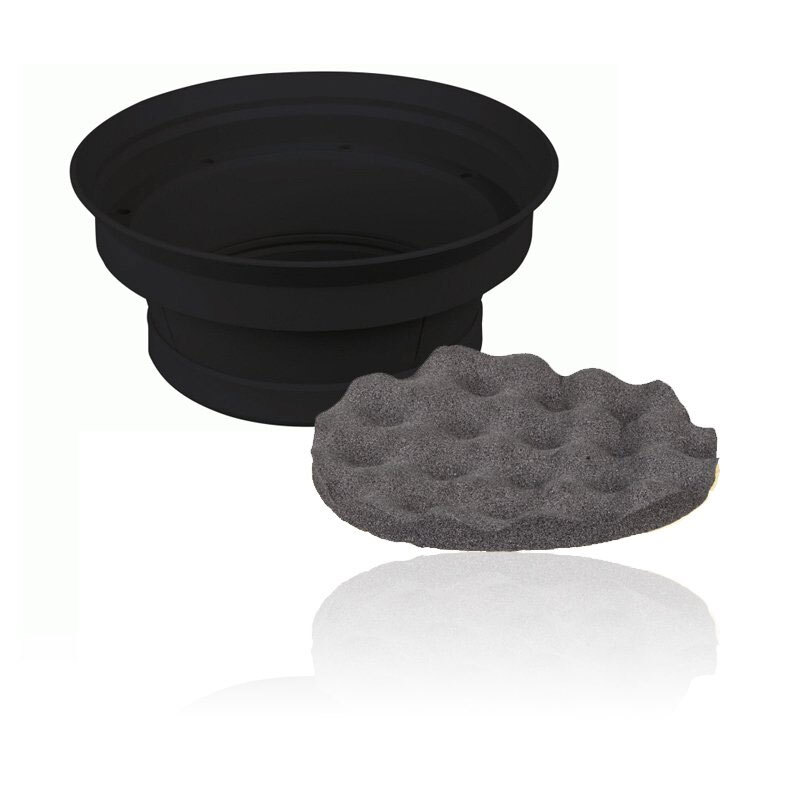

Protect your new investment with the InstallPRO speaker baffles which are also part of the package while improving speaker performance.

What Do You Get?

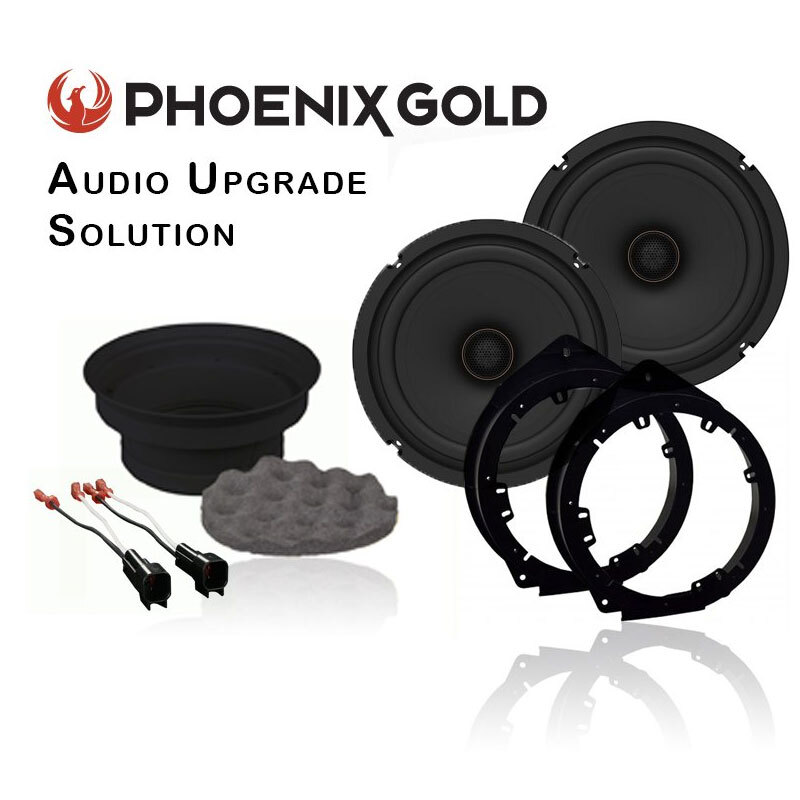

What's In The Box

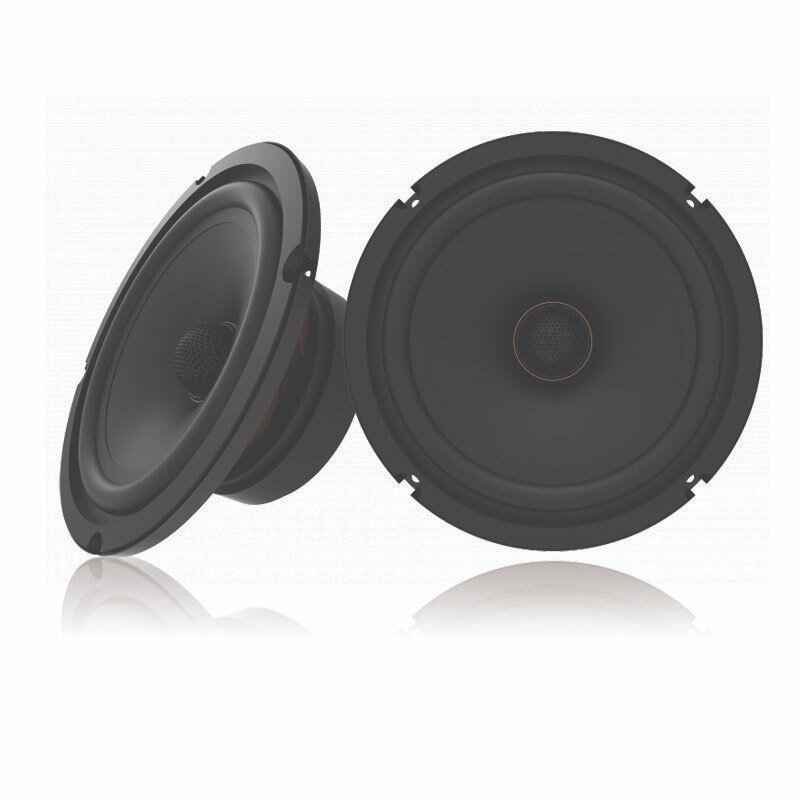

  • 2x 6.5" MX Series Full Range Speakers
  • 2x Metal Mesh Speaker Grills
  • 1x Phoenix Gold Decal
  • 2x InstallPRO Speaker Baffles

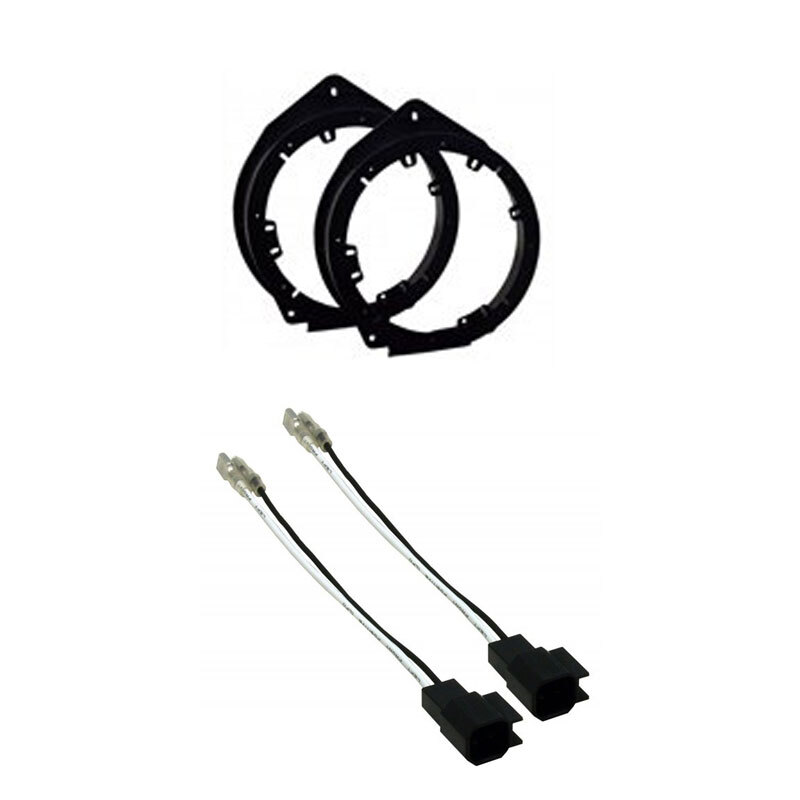

  • 2x GM Speaker Plug Harnesses
  • 2x GM Speaker Adaptors



Specifications

Power Handling

  • RMS Power Handling – 100 Watts
  • Peak Power Handling – 150 Watts



Speaker Dimensions

  • Speaker Size – 6.5"
  • Mounting Diameter – 143mm
  • Mounting Depth – 58mm
  • Tweeter Size – 25mm



Hardcore Specifications

  • Frequency Response 59hz-20khz
  • Impedance 4ohm
  • FS 67hz
  • Vas 11.8Lrt
  • Xmax 10mm
  • Qts 0.419
  • Sensitivity (1W/M) 90dB
  • Cone Material PP cone
  • Surround Material rubber surround
  • Tweeter Material silk
  • Magnet diameter φ100x15mm
  • Magnet Weight 469.5g
Important Product Compatibility Information
Includes Vehicle Speaker Adaptors?

YES
Includes Speaker Harness?

YES
Size

6.5" Coaxial Speaker
Tweeter Size

19mm Mylar Balanced Dome Tweeter
Woofer Mounting Depth

51.5mm
Voice Coil Configuration

Single 4 Ohm
Woofer Size

6.5"
PLEASE NOTE

Included speaker adaptor harness is designed for GM/Holden vehicle application. As this kit can be used on other vehicles the harness included may not be applicable.
Product Vehicle Applications

This product is compatbile with the following vehicles.
If no vehicles are listed, this product is universal product (non vehicle specific)
Vehicle Make Vehicle Model Vehicle Year + Vehicle Chassis Code
CHEVROLET CAMARO 2010 - 2015 (5TH GEN)
HOLDEN EQUINOX 2017 - 2018 (EQ)
HOLDEN MALIBU 2013 - 2016 (EM)
