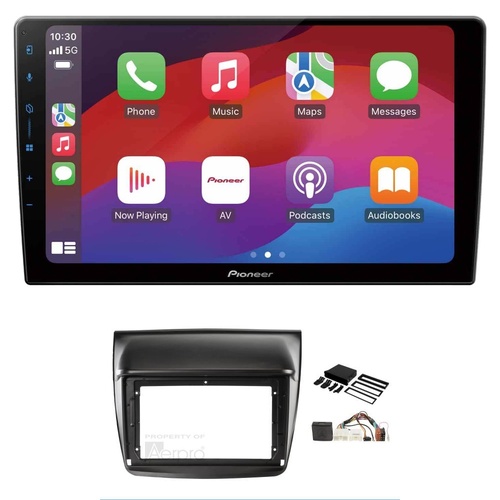

Pioneer DMH-AP6650BT 9" head unit & Aerpro AKMB3 Installation Kit to suit Mitsubishi triton & challenger 2012-2014

The Ultimate In-Car Entertainment Upgrade with Pioneer DMH-AP6650BT 9 Inch Wireless Carplay Android Auto Head unit with Aerpro AKMB3 9 Inch install kit to suit Mitsubishi triton & challenger 2012-2014

Pioneer DMH-AP6650BT 9-Inch Custom-Fit Wireless Apple CarPlay Android Auto Head Unit

• 9” WSVGA Capacitive Touch Screen
• Apple CarPlay™ (Wireless or Wired Connection)
• Android Auto™ (Wireless or Wired Connection)
• Direct Launch Key (CarPlay & Android Auto)
• Bluetooth (Dual Phone)
• WebLink® Cast for Smartphone Mirroring (iOS and Android Devices)

The Aerpro AKMB3 9" Installation Kit comes with all of the components required to install a 9" trapezoid shaped radio into your Mitsubishi Triton (2012-2014) and Challenger (2012-2013) vehicles whilst maintaining important vehicle features such as Steering Wheel Control functionality.

Head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Important Information:

• This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
• This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
• Feature Retention will be radio dependent.

Features

• To suit Mitsubishi Triton (2012-2014) and Challenger (2012-2013) vehicles
• Includes all the parts required to complete the installation and to retain important vehicle features
• Retains steering wheel controls (including phone button)
• To simplify installation, this kit is compatible with Aerpro APP8 aftermarket headunit harness adapters

Specs

• Kit Inclusions:
  • Black Facia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Universal Pocket
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes (including phone button)
  • Factory Reverse Camera: No
  • AUX Input: No
  • USB Input: No
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: Yes
  • Other:
• Important Information:
  • This kit is developed to suit universal trapezoid shaped radios such as Pioneer DMH-AP6650BT, Kenwood DMX80AXS and Aerpro AM9X, and various Android Head Units. It will not suit standard DIN or double DIN sized radios.
  • This kit does not support Pioneer CAN Bus features but comes with a steering wheel control adapter. Instead of selecting 'CAN Bus Adapter' on boot-up, go to the Menu and select 'Steering Wheel Control' > 'With Adapter'.
  • Feature Retention will be radio dependent.

Vehicles

• Mitsubishi Triton 2012-2014 MN [GLX-R]
• Mitsubishi Challenger 2009 - 2013 PB
