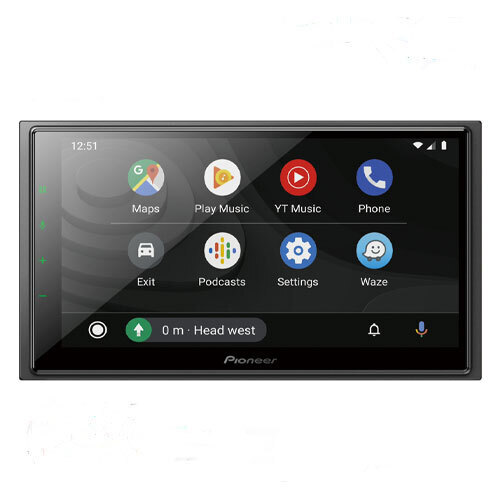

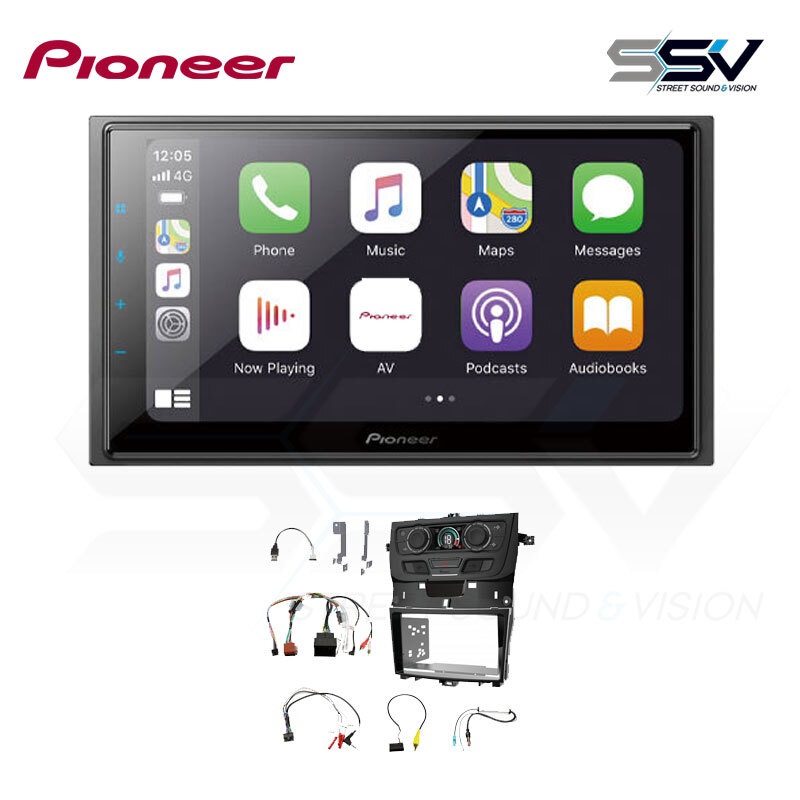

This is a Complete Fit Kit, includes all the parts you need to install the Pioneer DMH-Z6350BT to suit Holden Commodore VE Series2

Capacitive Touch-screen “Short Chassis” Multimedia player with Apple CarPlay, Android Auto & Alexa Built In.

• 6.8” Capacitive Touch panel screen
• Short chassis (87mm deep)
• Apple CarPlay (Wireless or cable connection)
• Android Auto (Wireless or cable connection)
• Alexa built-in
• Bluetooth
• Dual Camera Inputs

Taking your “connected” in-car experience to the next level the Pioneer DMH-Z6350BT provides you with unmatched performance in a compact design!

Sharing many of the features of our flagship AV digital media receiver (DMH-ZF9350BT), the DMH-Z6350BT also provides “Out of this world” performance featuring a 6.8″ Capacitive screen, sleek design with capacitive touch buttons but when limited space is available, the DMH-Z6350BT is only 87mm deep allowing for a wide range of installation opportunities.

With the additional of a new and improved GUI users can view live sports scores for their favourite teams*, weather information*, smartphone notifications* all on the home screen as well as set their own profiles which will automatically applying their desired images, layout, sports team selection etc when the smartphone is connected.

Supporting a wide selection of entertainment and information services including:

Apple CarPlay (wireless or cable connection), Android Auto (cable connection), Alexa built in**, connected services including live weather, sports scores, internet browser, HD video playback from USB, Hi-Res audio playback, AM/FM Tuner, wireless mirroring for select Android devices and more, you will never want to leave your car!

*limited sport available. Access to the Pioneer CarAVAssist app and mobile data required.

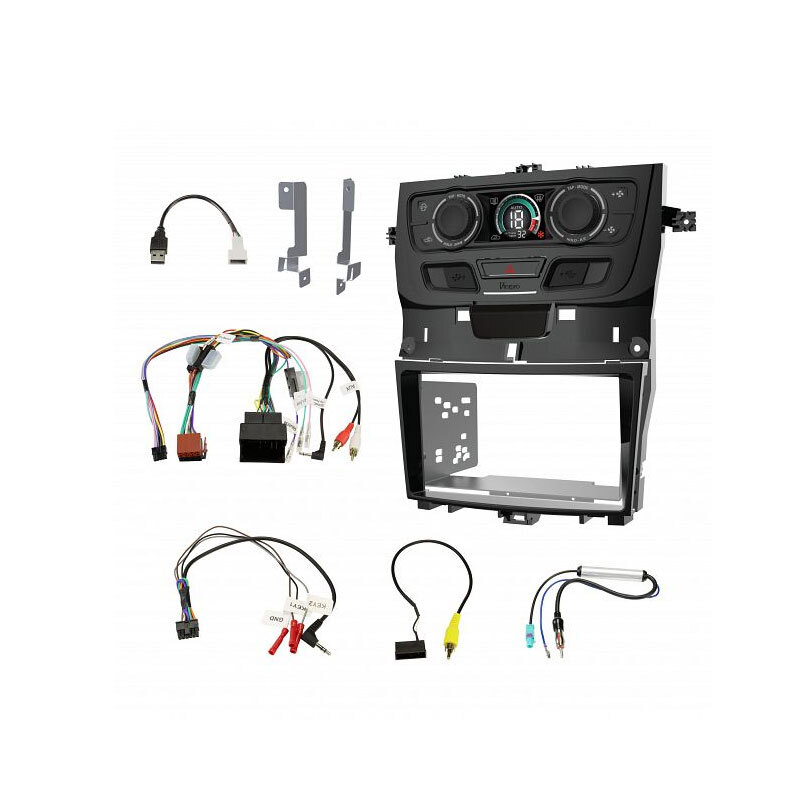

Aerpro FP9550BK Double din install kit to suit Holden VE series 2 (Piano Black color)

• Holden Commodore 2011-2012 VE Series II

Description:

Designed and engineered in Australia, the Aerpro FP9550BK Head Unit Install Kit allows for the installation of an aftermarket double din head unit into Holden VE Series 2 vehicles. The piano black kit is compatible with SV6, SV6Z, SS, SSZ and SSV variants that have black trim around the factory display and climate control unit. The kit retains important factory features including steering wheel controls, reverse camera, AUX input, USB input and microphone, and the integrated IPS display shows outside temperature, climate control and factory parking sensor visualisation. It also features dual USB pass through ports as well as hand brake, reverse gear and speed pulse outputs. This kit includes: double din facia kit, piano black trim panel, built-in HVAC and SWC unit, universal SWC patch lead, USB retention lead, camera retention lead, antenna adaptor, mounting kit, support brackets and a manual. To simplify the installation process we recommend using Aerpro APP8 or APP9 aftermarket head unit harnesses (sold separately).

Important Information:

• Install Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

• This kit is designed for SV6, SV6Z, SS, SSZ and SSV variants that have black trim around the factory display and climate control unit. For vehicles with silver/grey use FP9550GK.

• For steering wheel control retention the aftermarket head unit must be SWC compatible.

• For reverse camera retention the aftermarket head unit requires a reverse camera input.

• For USB retention the aftermarket head unit requires a rear USB input.

• For AUX retention the aftermarket head unit requires a rear RCA AUX input.

• For microphone retention the aftermarket head unit requires a 3.5mm external microphone input (models with 2.5mm connection will require an adaptor, not included).

• The dual USB ports are pass through only, the aftermarket head unit requires rear USB inputs for connection.

• Nav button on steering wheel controls does not function with this kit.

Features:

• Allows for the installation of an aftermarket double din head unit into Holden VE Series 2 vehicles

• High quality piano black finish to suit the vehicle interior

• Compatible with SV6, SV6Z, SS, SSZ and SSV variants that have black trim around the factory display and climate control unit

• Retains important factory features including steering wheel controls, reverse camera, AUX input, USB input and microphone

• Integrated IPS display shows outside temperature, climate control and factory parking sensor visualisation

• Dual USB pass through ports for connecting to the rear USB inputs on the aftermarket head unit

• Hand brake, reverse gear and speed pulse outputs

• To simplify installation this kit is compatible with Aerpro APP8 and APP9 aftermarket head unit harnesses (sold separately)

• Designed and engineered in Australia

Specs:

• Application: Double Din

• Colour: Piano Black

• Inclusions:

  • Double din facia kit

  • Piano black trim panel

  • Built-in HVAC and SWC unit

  • Universal SWC patch lead

  • USB retention lead

  • Camera retention lead

  • Antenna adaptor

  • Mounting kit

  • Support brackets

  • Installation / User manual

• Important Information:

  • Install Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

  • This kit is designed for SV6, SV6Z, SS, SSZ and SSV variants that have black trim around the factory display and climate control unit. For vehicles with silver/grey use FP9550GK.

  • For steering wheel control retention the aftermarket head unit must be SWC compatible.

  • For reverse camera retention the aftermarket head unit requires a reverse camera input.

  • For USB retention the aftermarket head unit requires a rear USB input.

  • For AUX retention the aftermarket head unit requires a rear RCA AUX input.

  • For microphone retention the aftermarket head unit requires a 3.5mm external microphone input (models with 2.5mm connection will require an adaptor, not included).

  • The dual USB ports are pass through only, the aftermarket head unit requires rear USB inputs for connection.

  • Nav button on steering wheel controls does not function with this kit.

•
