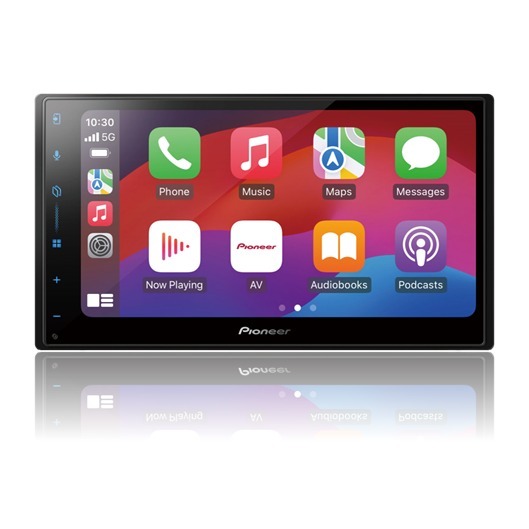

SPH-DA77DAB

6.8″ WIRELESS AV RECEIVER WITH DAB+ DIGITAL RADIO

• 6.8” Capacitive Touch-screen
• Apple CarPlay (Wireless or Wired Connection)
• Android Auto (Wireless or Wired Connection)
• DAB+ Tuner
• Dual Phone Bluetooth
• WebLink® and WebLink® Cast
• Dual Camera Inputs
• 3 x 4V Pre-Outs
• New 1-DIN Short Chassis Design

Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

*Requires Weblink Host smartphone app download. Not all applicable for all smartphones. For more information visit:

Google Play Store: https://play.google.com/store/apps/details?id=com.abaltatech.wlhostapp

Apple App Store: https://apps.apple.com/au/app/weblink-host/id1257907748

** Playback capability for various content may change.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)

The best iPhone experience on four wheels; Apple CarPlay is a smart and safe way to control your iPhone® in the car. Apple CarPlay enables you to make calls, navigate with Apple Maps, WAZE or Google Maps, listen to music, plus send and receive SMS messages.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)

Enjoy seamless connectivity and control of your Android smartphone in the car. Activate by using your voice, or the pressing the Pioneer touch-screen, Android Auto allows you to make phone calls, navigate with Google Maps or WAZE, listen to music and send/receive SMS messages.*

To use Android Auto on your car display, you’ll need an Android phone running Android 8 or higher, an active data plan, and the Android Auto app.

To wirelessly use Android Auto on your car display, you need a compatible Android smartphone with an active data plan. You can check which smartphones are compatible at g.co/androidauto/requirements.

Some features and devices may not be available in all countries. Subject to availability.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

6.8″ CAPACITIVE TOUCH-SCREEN

A fully flat capacitive touchscreen that allows for fast and responsive touch gestures and very high detailed images.

DAB+ DIGITAL RADIO

Enhance your radio listening experience in the car with crystal clear reception, as well as more choice of stations. Say goodbye to signal interference when listening to your favourite talkback or music radio station.

The Pioneer ANDAB1 DAB antenna is included.

WEBLINK® & WEBLINK® CAST

WebLink® enables a compatible smartphone with the WebLink Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen. WebLink compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more. WebLink enables this Pioneer receiver to deliver a modern infotainment system.

Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity and entertainment apps on a bigger screen and driver-friendly format.

For more information please follow the link: WebLink

The compatible smartphone must be connected to a compatible Pioneer receiver via USB and Bluetooth simultaneously to enable full WebLink functionality.

Certain apps may restrict some functions, such as video and music playback.

Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events.

WebLink® is a registered trademarks of Abalta Technologies, Inc. WebLink® Cast is a trademark of Abalta Technologies, Inc.

Yelp, Yelp logo and related marks are registered trademarks for Yelp.

Waze® is a registered trademark of Google LLC.

BLUETOOTH CONNECTION

Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair two Bluetooth enabled phones without having to go through complicated settings. When a registered Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the device.

From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle much more convenient.

REVERSE CAMERA INPUT

Reversing can be a stressful experience. The dual camera inputs allow you to connect two optional cameras for improved safety (visibility of hazards) and peace of mind, particularly when parking your vehicle or towing.

SHORT CHASSIS

The new chassis design provides a mid-depth (125mm) 1-DIN chassis to provide even greater installation flexibility and plenty of room to fit all required wiring behind the dash.
