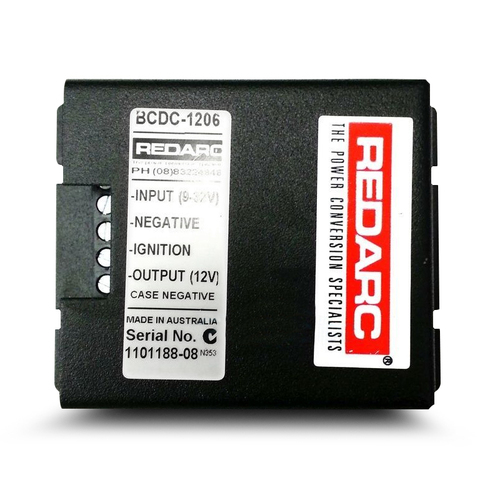

Redarc BCDC1206 Battery Charger Dc To Dc 12V 6 Amp 9-32V Input 3 Stage

Redarc Battery Charger is the Next Generation In-Vehicle Charging Technology

The BCDC1206 is a three stage 12 Volt 6 AmpDC to DC charger that operates with an input of between 9 and 32V.

The input voltage of the BCDC1206 can be above, below or equal to the output voltage making it ideal for charging an auxiliary 12V battery where the distance from the main battery may cause a significant voltage drop.

The wide operating voltage range provides a simple solution to charging trailer mounted batteries.

The BCDC1206 can deliver sufficient current to charge a battery that has a typical DC compressor fridge connected.

Features:

• Compact in size
• Over current and short circuit protection
• High operating temperature range up to 70°C
• Over temperature protection
• Input under voltage shutdown
• Input over voltage shutdown
• Led indication of output mode

Specifications:

• Input voltage range:9 - 32V
• Solar voltage range:N/A
• Solar switch on voltage (unregulated):N/A
• Maximum charging voltage:14.5V
• Output current:6A
• No load current:<100mA
• Standby current:<1mA
• Recommended input fuse:10A
• Recommended output fuse:7.5A
• Output power:72W
• MPPT solar regulator:No
• Ambient temperature:-20°C to +70°C
• Dimensions:80 x 60 x 20mm
• Weight:200g
