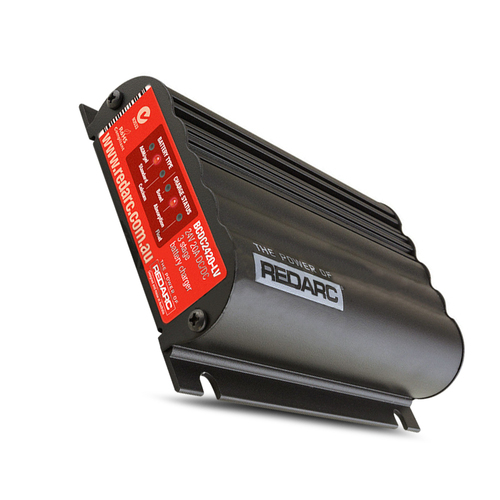

Redarc BCDC2420-LV 24V 20A Low Voltage In-Vehicle DC Battery Charger

Designed to Charge All Major Lead Acid Batteries!

The BCDC2420-LV is a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid batteries to a proven 100%.* It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator.
*large capacity battery banks may require a few cycles to fully charge.

Three stage charging profile
The REDARC BCDC2420-LV Low Voltage In-vehicle battery charger is a three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge AGM, gel, VRLA and standard lead acid automotive 24V battery systems to an optimal level with chemistry specific battery charging algorithms.

Perfect for trucking and heavy vehicle applications
The BCDC2420-LV features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

DC to DC battery with in-built MPPT solar regulator
The BCDC2420-LV features a MPPT Solar Regulator, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Features:

• Multi-Stage DC to DC Battery Charger
• MPPT Solar Regulator
• Start Battery Isolator
• Fully sealed
• No fan for super quiet operation
• Charges AGM, Gel, Calcium content, VRLA, and Standard Lead Acid batteries

Specifications:

• Input (Operating) Voltage 9 - 32VDC
• Maximum Charging Voltage 30.6V
• Output Current Rating (Cont.) 20A
• Input Fuse Rating 50A
• Output Fuse Rating 30A
• Standby Current Draw <50mA
• Output System Voltage 24VDC
• Output Power 600W
• Length (mm) 150
• Width (mm) 120
• Height (mm) 37
• Weight (kg) 0.68
• Type Approval E and CE
