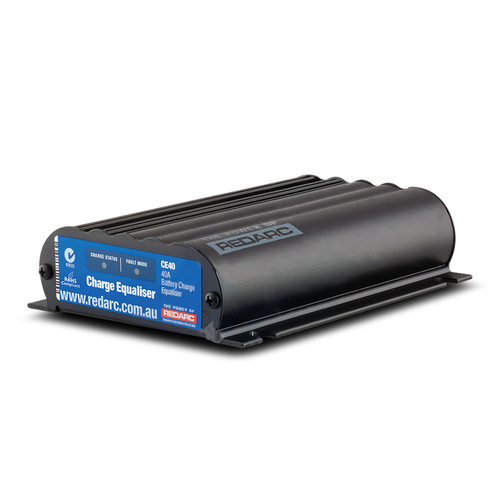

REDARC CE40S2 40A Charge Equaliser

Useful When Space or Cost Prohibits the Installation of a Separate 12 Volt Battery

The REDARC 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE40S2. The CE40S2 has a maximum 40A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay orisolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.

Benefits:

• Designed to keep your 24 volt batteries equally charged
• Reduce down time and running costs by extending battery life
• Peak load currents are limited only by the battery
• Designed for Australia's Harsh Conditions

Features:

• Based on the award winning BCDC Platform
• High peak current capability
• Fast transient response
• Sealed and suited for commercial applications

Specifications:

• Input (Operating) Voltage: 20 - 32VDC
• Output Current Rating (Cont.): 40A
• Input Fuse Rating: 60A
• Output Fuse Rating: 60A
• Warranty: 2 Years
• Standby Current Draw: <100mA
• Output System Voltage: 6 - 16VDC
• Length (mm): 150
• Width (mm): 120
• Height (mm): 37
• Weight (kg): 0.68
• Type Approval: E and CE
