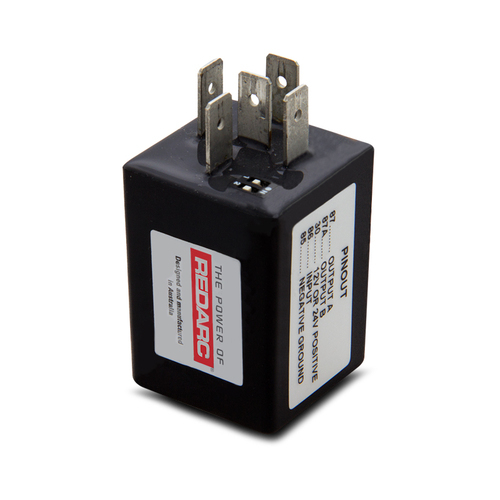

REDARC CR1224L 10A Latching Chopper Relay 12V or 24V (Flip-Flop)

Features 2 Outputs Which Alternately Latch ON or OFF with the Application of an Input from a Single, Momentary Action, Push-Button Switch

Each output remains ON or OFF) until the next input signal causes the outputs to swap.

The Latching Relay is ideal for fog light switches, rear demisters and any dash type switches that need to latch on from a momentary push. They can also be used in conjunction with a Bi-Metallic switch toprovide auto off directional motor control like electric windows.

Each output has a maximum rating of 10 amps. The supply must be protected by a fuse of suitable rating.

Features:

• 12/24V operation
• 10A maximum current
• Compact design
• Standard relay base pinouts

Specifications:

• Input (Operating) Voltage: 12V/24V
• Output Current Rating (Cont.): 10A
• Length (mm): 81
• Width (mm): 31
• Height (mm): 30
