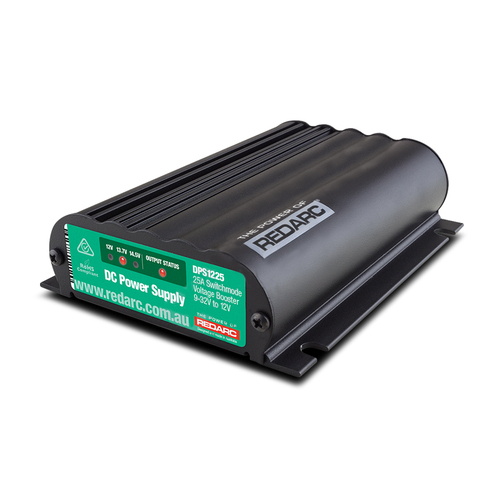

REDARC DPS1225 12V 25A In Vehicle DC Power Supply

Provides Constant, Regulated Power for All Sensitive Load Requirements

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 12V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARC’s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

Benefits:

• More efficient with regulated output power
• Improved functionality and reduced installation complexity
• Protects against surges/spikes and incorrect connections

Features:

• Fully encapsulated
• Ignition controlled
• No fan for reduced noise
• Highly efficient design
• Wide input voltage range
• User selectable output voltage

Specifications:

• Output System Voltage: 12VDC
• Output Current Rating (Cont.): 25A
• Input Fuse Rating: 40A
• Output Fuse Rating: 40A
• Input (Operating) Voltage: 9 - 32VDC
• Length (mm): 150
• Width (mm): 120
• Height (mm): 37
• Type Approval: E and CE
