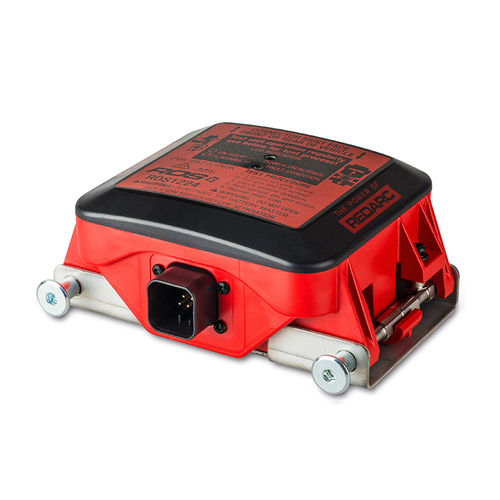

REDARC ROS1224 12V to 24V Roll Over Sensor

Signals the Isolation Switch to Disconnect Power to the Truck System in the Event of a Rollover

The Roll Over Sensor (ROS) triggers a battery isolation in the event of a vehicle rollover by signalling the isolation switch to disconnect power to the trucks system.

It enables trucks to meet the legal requirement of roll-over sensing (AS2809:2008) and represents a significant improvement over existing rollover switches in the market.

The Roll Over Sensor has been designed for high reliability undergoing thorough environmental and lifetime testing.

It is compatible with most common battery master isolation switches and will provide enhanced safety when used with REDARC’sBattery Master Isolation Switch(BMIS).

Features:

• Easy periodic test by pin-removal and tilt mechanism
• Suitable for 12V or 24V systems
• Uses dual accelerometers for automotive safety applications, giving high accuracy, reliability and ability to detect fault conditions
• Resilientto truck electrical environments
• Immune to vibration, bump, shock, turning or electrical transients
• Built for high reliability using automotive grade parts, and redundant sensors and controllers
• Custom industrial design housing
• Fault detection and indication LED on the unit and via an optional dash-mounted lamp

Specifications:

• Input (Operating) Voltage: 9V to 32V (12V or 24V systems)
• Current draw: (into VIN+) 16mA (typical)
• Switching Point: 45° - 64° (55° typical)
• Waterproof IP rating: IP66, IP67 & IP69K
• Length (mm): 150
• Width (mm): 122
• Height (mm): 65
