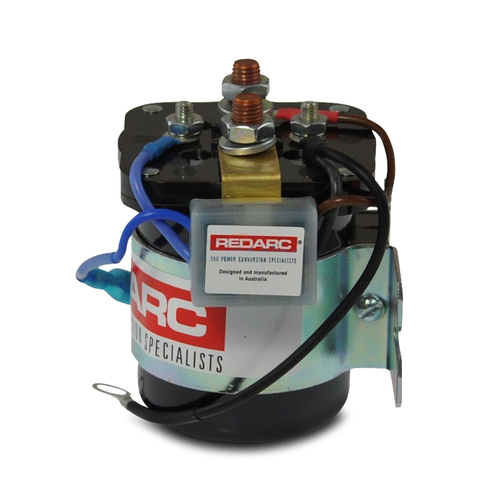

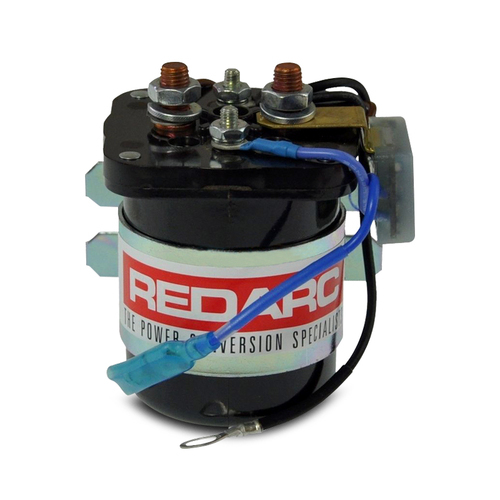

REDARC SBI224 24V 200A Smart Start Isolator

A Safe Way to Charge a Heavy Duty Dual Battery System

The REDARC Smart Start SBI224 200A is a 24V DC 200A microprocessor-controlled, dual battery isolator designed to protect the start battery from excessive discharge while allowing the auxiliary battery to supply charge to non-essential loads.

The REDARC Smart Start® SBI224 is used in dual battery systems to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. The SBI224 provides 24 volt DC incorporating 200A of continuous ratings. The 200A battery isolator is best suited for heavy-duty operations.

Power Saving Technology
The Smart Start SBI224 battery isolator is mostly used in commercial vehicle dual battery systems, it incorporates electronic components preventing the solenoid from generating high voltage transients. Used instead of a diode battery isolator due to reduce voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Features:

• Overmould design
• Compact in size and easy to install
• Silver contacts for longer life and suitable for marine applications
• Power saving technology
• Fault indication
• Fully surge protected

Specifications:

• Input (Operating) Voltage: 24V DC
• Output Current Rating (Cont.): 200A
• Input Fuse Rating: 200A
• Output Fuse Rating: 200A
• Length (mm): 100
• Width (mm): 95
• Height (mm): 90
• Type Approval: CE
