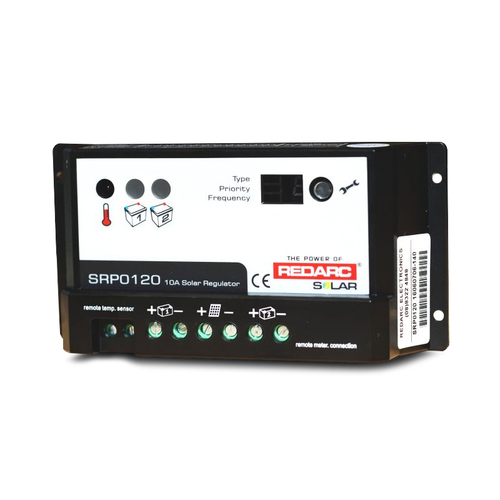

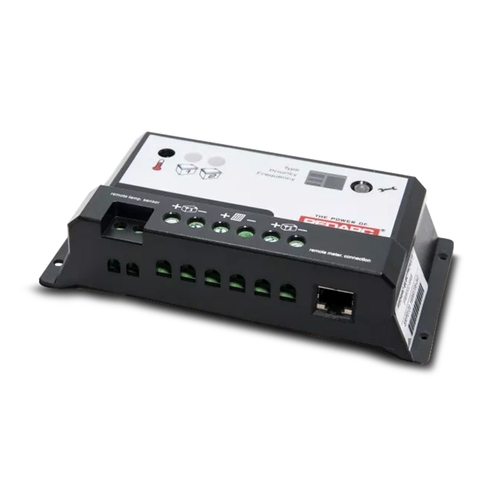

Redarc SRP0120 10A Solar Regulator

Ensures the Correct Charge is Supplied Safely and Efficiently to Charge an Auxiliary Battery With Redarc Solar Regulator

REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.

Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.

Optional Monitor

REDARC recommends the purchase of the REDARC Solar Remote Monitor (SRP0240-RM) to change battery types and configuration settings.

Features:

• Multi-stage charging
• Dual battery outputs
• LED indication
• Remote monitor (optional)
• Remote temperature sensor (optional)

Specifications:

• Input (Operating) Voltage: 12V/24V
• Output System Voltage: 12V DC
• Maximum Charging Voltage: 14.8V
• Output Current Rating (Cont.): 10A
• Standby Current Draw: 4mA
• Length (mm): 153
• Width (mm): 76
• Height (mm): 37
