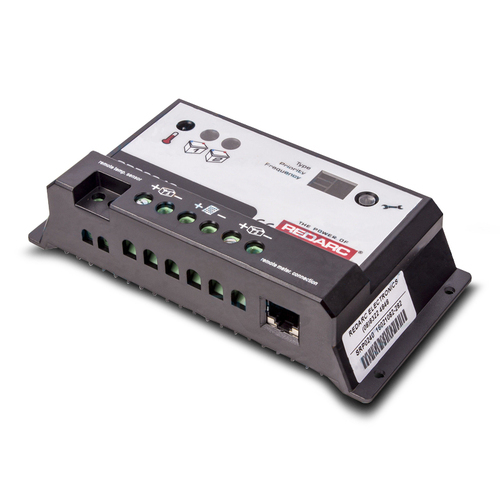

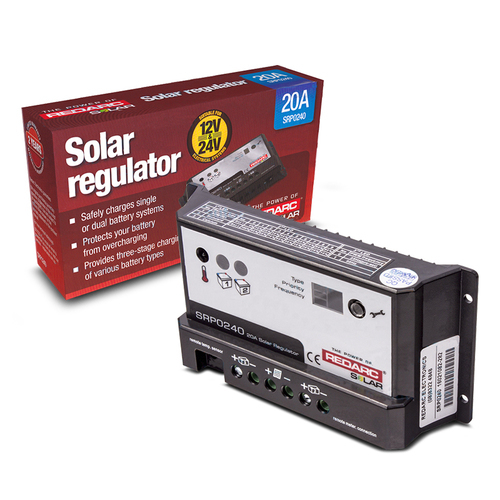

Redarc SRP0240 20A Solar Regulator

Ensures the Correct Charge is Supplied Safely and Efficiently to Charge an Auxiliary Battery With Redarc Solar Regulator

The REDARC 20A Solar Regulator ensures that the power supplied by 12 volt or 24 volt solar panels is regulated to the right voltage to charge auxiliary batteries and come in both 10A and 20A models.

The SRP regulators are primarily used with the SMR range of solar panels. And when theAnderson to bare wire connector cable (SRC0016)is purchased, the solar blankets and folding solar panels can use the SRP range of solar regulators.

Optional Monitor

REDARC recommends the purchase of the REDARCSolar Remote Monitor (SRP0240-RM)to change battery types and configuration settings.

Features:

• Multi-stage charging
• Dual battery outputs
• LED indication
• Remote monitor (optional)
• Remote temperature sensor (optional)

Specifications:

• Input (Operating) Voltage: 12V/24V
• Output System Voltage: 12V DC
• Maximum Charging Voltage: 14.8V
• Output Current Rating (Cont.): 20A
• Standby Current Draw: 4mA
• Length (mm): 153
• Width (mm): 76
• Height (mm): 37
