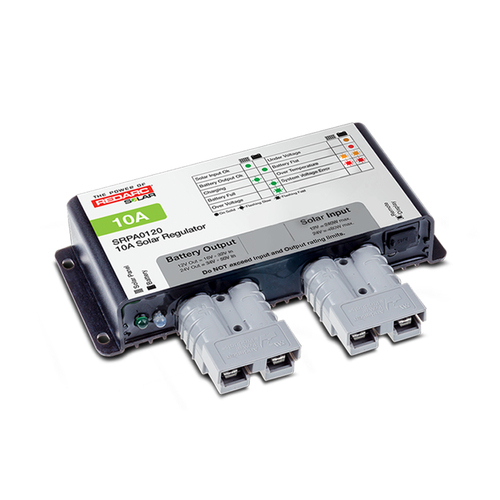

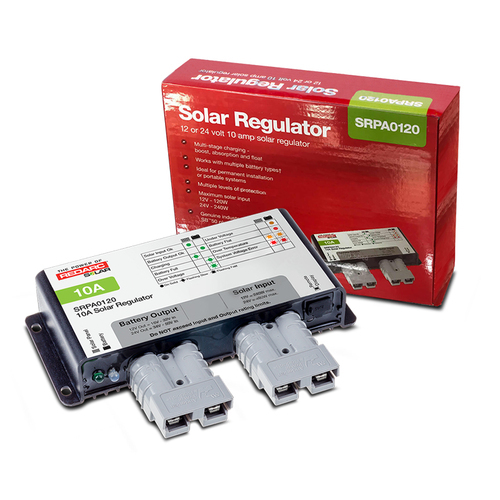

REDARC SRPA0120 10A PWM Anderson Solar Regulator

Ensures the Correct Charge is Supplied Safely and Efficiently to Charge an Auxiliary Battery With Redarc Solar Regulator

REDARC’S newly designed 10 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works with the115 watt SunPower®and the112 watt Amorphous cell blanket.REDARC’s 10 Amp Solar Regulator acts as the go between to transfer power generated from the panels to the battery.

Featuring multistage charging; boost, absorption and float, REDARC’s 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect itfrom over charging.

It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and isideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.

Optional Monitor
Battery default setting is AGM. REDARC recommends the purchase of theREDARC Solar Remote Monitorto change battery types and configuration settings.

Features:

• Multi-stage charging- boost, absorption, and float
• Works with multiple battery types (REDARC Solar Remote Monitor required)
• Ideal for permanent installation or portable systems
• Multiple levels of protection – over temperature, over charge, reverse polarity
• Genuine Industry Standard Anderson™ SB™50 plug connection

Specifications:

• Input (Operating) Voltage: 12V/24V
• Maximum Power Rating: 120/240W
• Output Current Rating (Cont.): 10A
• Charge Type: PWM 50Hz
• Waterproof IP rating: Yes - IP55
• Operating Temperature: -35°C to +55°C
• Height (mm): 28
• Length (mm): 153
• Width (mm): 98
