REDARC TIM06 Timer Relay 10A Delayed On or Temporary Output @ Off 12V or 24V

Suitable for Mobile and Stationary Installations, They Feature Customisable Time and Switching Mode Settings

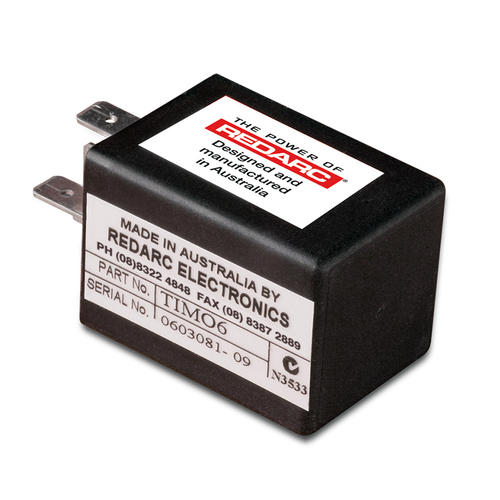

The REDARC Multi Function Timer (TIM06) is a timer relay for 12 volt and 24 volt applications.

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to pluginto a standard automotive relay base and have the same pin numbers as a standard automotive relays (undersideshown on diagram).

Contacts operate in a similar way to a changeover relay.

• The timer switches the internal relay to provide output on PIN 87. (Positive output only)
• The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
• Use Switch 2 to select time range between SECONDS and MINUTES.
• Use the potentiometer to adjust time (increasing in clockwise direction).

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

Features:

• User adjustable 1- 60 seconds/minutes
• Change over type relay
• Standard automotive relay base
• Fully customisable upon request

Specifications:

• Input (Operating) Voltage: 12V/24V
• Output Current Rating (Cont.): 10A
• Length (mm): 75
• Width (mm): 30
• Height (mm): 24
