Tyredog TD-2700F-X10+12 22 Wheel (10+12) Truck & Trailer Tyre Pressure Monitoring System

The TYREDOG™ 22 Wheel TD-2700F-X10+12 (10) Wheel Truck and (12) Wheel Trailer Tyre Pressure and Temperature Monitoring kit is a must have safety gadget for any off-roading or motoring enthusiasts. Stay alerted of any tyre abnormalities immediately, address the issue instantly and save yourself from serious and irreparable damage. The TYREDOG™ system is one of the most highly regarded Tyre Pressure Monitoring System that can save you from a trip ruining experience. Have complete confidence in your tyres knowing that you're being guarded by a TYREDOG™. As little as 1 PSI change in pressure will be picked up by the TYREDOG™.

Correct tyre pressure ensures fuel efficiency, reduces tyre wear, the risk of aquaplaning and lack of traction. Normally all the necessary check-ups cost time, effort and money.

Suitable for: Trucks and Trailers. Important Note: They can't  be used on water cooled tyres.

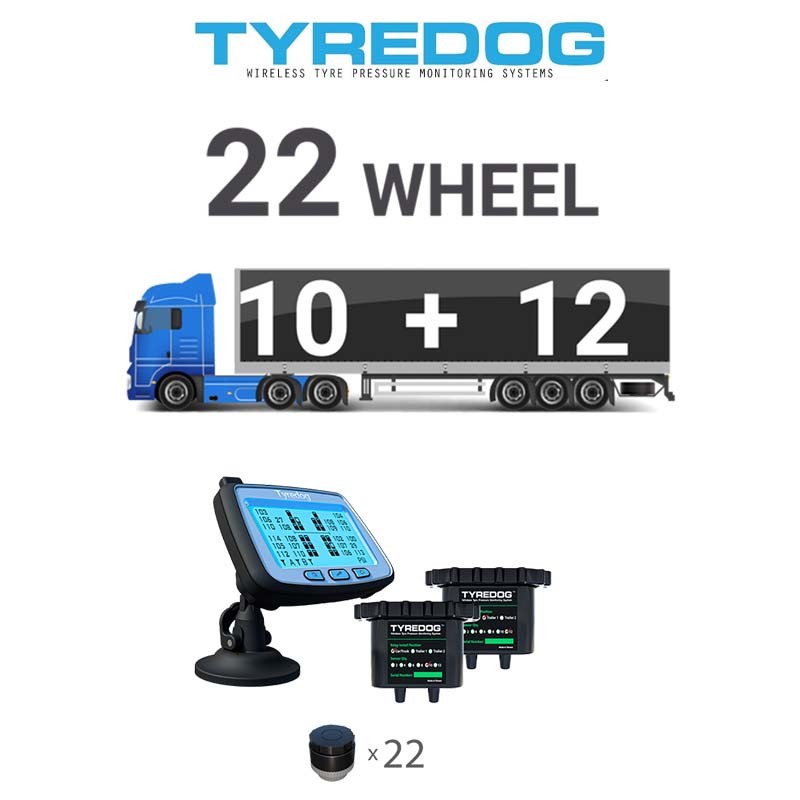

This system consists of a TD-2700F-X10 (10) Wheel Truck Kit and a TD-RY2700F-X12 (12) Wheel Add On Trailer Kit. It has the flexibility of adding one more Add On Trailer kit if required.

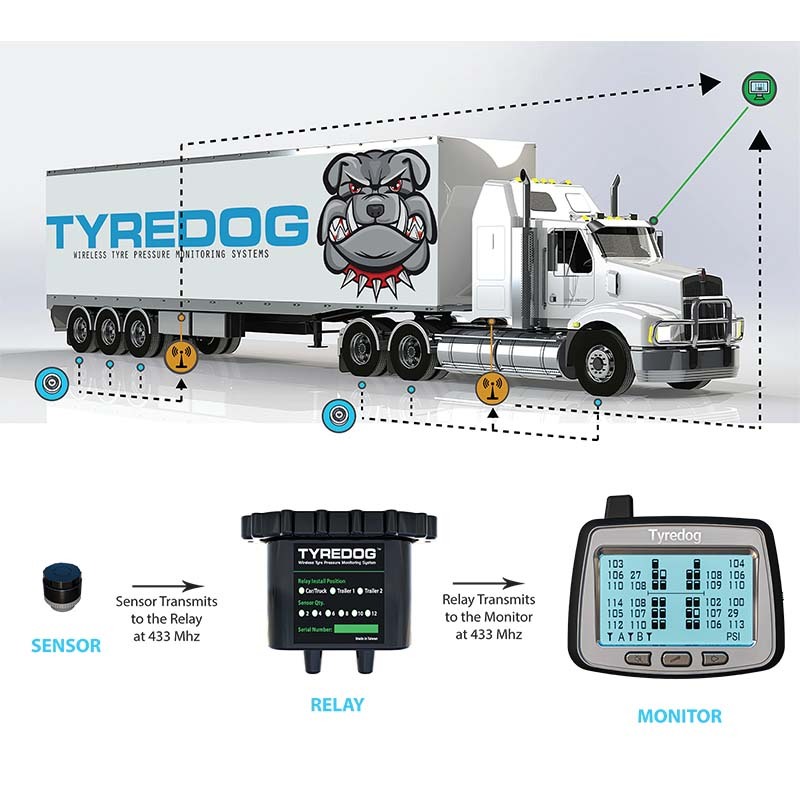

HOW IT WORKS

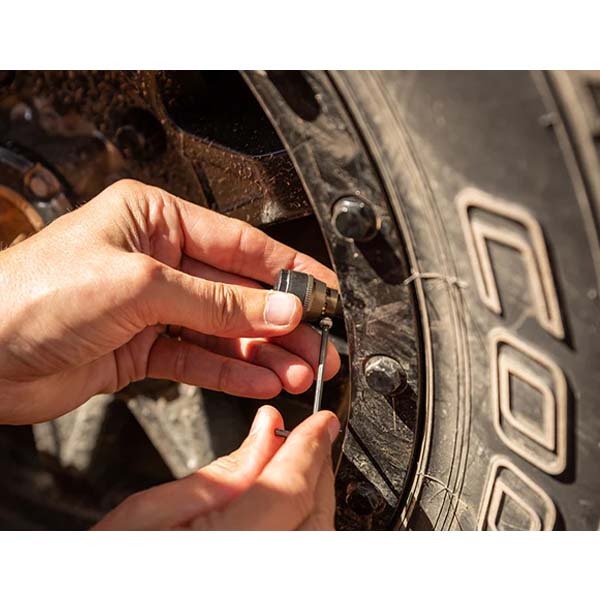

The Wireless Sensors are fitted to the wheels valve stem. Simply replace the valve cap with the TyreDog Wireless Tyre Pressure monitoring sensor.


The Relay / repeater system must be mounted underneath vehicle in a central location to the Tyres being monitored. This can be powered up by 4 x AA Batteries or you can hard-wire to a 12V/24V Power Source.

Once the Sensors and Relay are fitted and the monitor/receiver is turned on (Powered by 12/24V Cigarette Lighter Adaptor), within a couple of minutes or once the wheels rotate, the latest Pressure and Temperature information will be updated on the monitor/receiver.

The sensors are constantly monitoring and reading your tyre pressure and temperature and as soon as there is a 1 PSI change in pressure and/or every 1 minute, the sensors will transmit the latest pressure and temperature reading to your monitor.

If the tyre pressure falls or rises above the user pre-set levels, the unit will beep to alert the driver. There is also a visual indication on the Monitor / Receiver unit. Low, High Pressure and High Temperature threshold settings can be adjusted per axle by the user.

For further information regarding the operation of this unit, please read the Owners Manual which can be found by clicking on the Manuals Tab above.

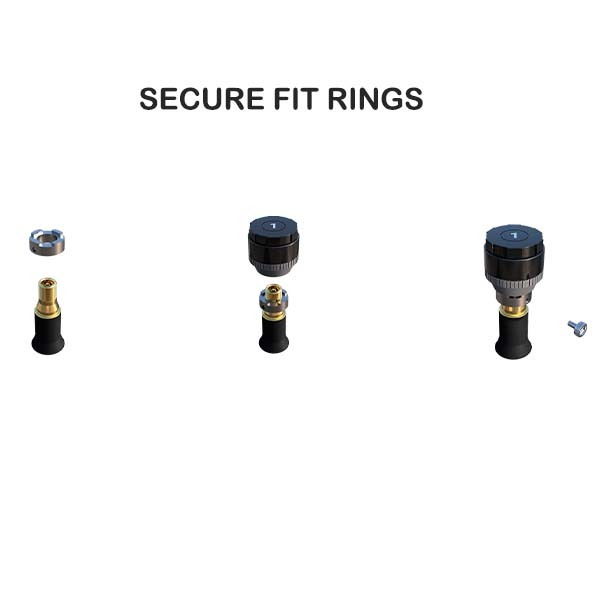

SECURE FIT RINGS
You may choose to fit the supplied SecureFit ring to ensure the sensor is securely fastened. This SecureFit ring can also act as a theft deterrent.

 Tyredog Secure Fit Anti-theft rings Tyre Pressure Monitoring System

WATERPROOF & DUSTPROOF SENSORS
We've designed these sensors for off-road use. Suitable for river-crossings, sand, mud and everything in-between. Externally sealed from any water, moisture and dust.

VERSATILE MOUNTING
Mount the TYREDOG™ how you want it. The super strong suction cap can be mounted on your windscreen. Utilising the ball join the TyreDog screen can be perfectly positioned to your liking

UP TO 100 METRES TRANSMISSION RANGE
With the included relay you can accurately transmit to a maximum of 100 metres. Transmission range will vary depending on size and vehicle structure. The Relay should be mounted as close to the tyres being monitored as possible as all the range is from the relay to the monitor.
Tyredog Tyre Pressure Monitoring System for Caravan and Trailers

NUMBERED & LOCATION SPECIFIC SENSORS
