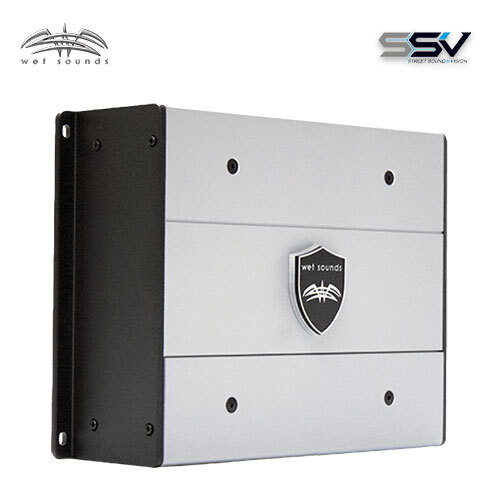

WET SOUNDS HTX4: HTX SERIES CLASS D 4 CHANNEL AMP

Wet Sounds™ Hydro-Tech™ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High-Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well-balanced match for all of the Wet Sounds™ products.

• Removeable Wire Plugs
• Class D Amplifier
• Conformal Coated PCB
• Completely Sealed Salt Water Compliant High Mass Heat Sink
• Stainless Steel Hardware
• Microprocessor Controlled
• Back Lit Logo Badge Horizontal or Vertical Placement
• Wet Sounds™ Extensive Crossover Network

Description

• RMS Power @ 4 ohm Stereo 100 x 4 watts RMS @ < 1.0% THD
• RMS Power @ 2 ohm Stereo 150 x 4 watts RMS @ < 1.0% THD
• RMS Power @ 4 ohm Mono 300 x 2 watts RMS @ < 1.0% THD
• Input Sensitivity Variable from 0.2V to 6.1V
• Frequency Response -3dB 7Hz-33Hz
• Bass Boost 0db -12db @ 45Hz
• Crossover Range Low Pass 50Hz - 250Hz 12dB/Octav
• Crossover Range Subsonic Filter 50Hz - 250Hz 12dB/Octav
• Separation >52dB
• S/N Ratio (Awtg)
  • >62dB (1 watt 4 Ohm)
  • >85dB (125 watts 4 Ohm)

Note: All specifications are for each HTX4
