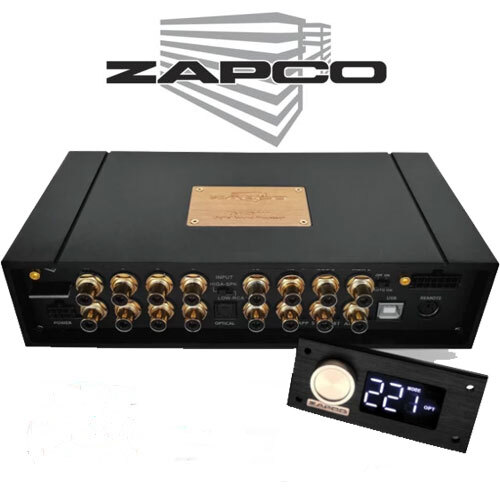

ZAPCO 6-In 8-Out DSP With Bluetooth Streaming and Remote

ZAPCO 6-In 8-Out DSP With Bluetooth Streaming and Remote

DSP-Z8 IV II BT

SKU:DSPZ8IVIIBT

$899.00


Sold Out
Notify Me
Add To Compare

Calculate Shipping

Standard Shipping - $14.95
Shipping with Signature

  • DSP Processor: Cirrus Logic CS47048
  • Power: 150 MHz/32 bit/48 KHz
  • 8 Channels
  • ADC: Cirrus Logic CS5368 24 bit/192 KHz
  • ADC Dynamic Range/THD: 114 dB/-105 dB
  • DAC: Cirrus Logic CS47048 32 bit/192 KHz
  • DAC Dynamic Range/THD: 108 dB/-98 dB
  • Low level (Pre)/Sensitivity: 8/1-5 VRMS
  • High Level (Spk In)/Sens.: 6/2-20 V
  • AUX Inputs/Sensitivity: 1/0.2-4 VRMS
  • Optical IN: 24 bit-192 KHz
  • Output Ch. RCA/Sensitivity: 8 / 4 VRMS
  • Freq. Response (-3dB): 10 Hz - 22.5 KHz
  • S/N Ratio Digital Input: 110 dBA
  • S/N Ratio Analog Input: 106 dBA
  • THD+N Digital Input: 0,002 %
  • THD+N Analog Input: 0,005 %
  • Crosstalk at 1 Khz: 90 dB
  • F/R EQ: 1-6 ch Gr. & Par./31 poles
  • Effect EQ: 7-8 ch Gr. & Par./11 poles
  • Mute/Solo: Yes, each channel
  • Time Align. (Range/Steps): 0/15 ms / 0.02 ms
  • Max Delay (Cm/Steps): 515 cm / 0.68 cm
  • Polarity: 0/180°

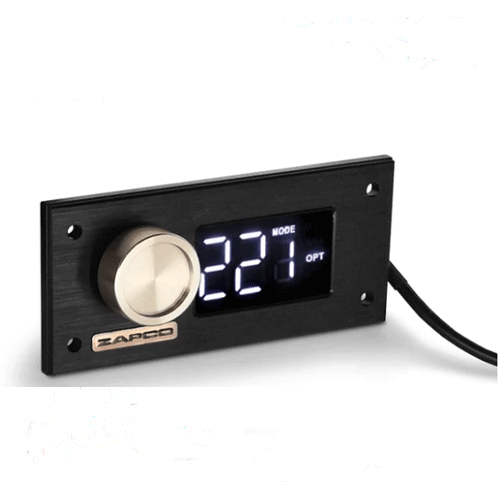

  • Display (included): 1” LCD
  • Display (optional): 3” LCD Touch-Screen
  • Bluetooth Streaming
  • PC/Display Connection: USB/6-pin Mini DIN
  • Unit Dimensions: 210(L) x 125(W) x 48(H)
  • Display Dim.: 111(L) x 49(W) x 16(H)

(DSPZ8IVIIBT)
