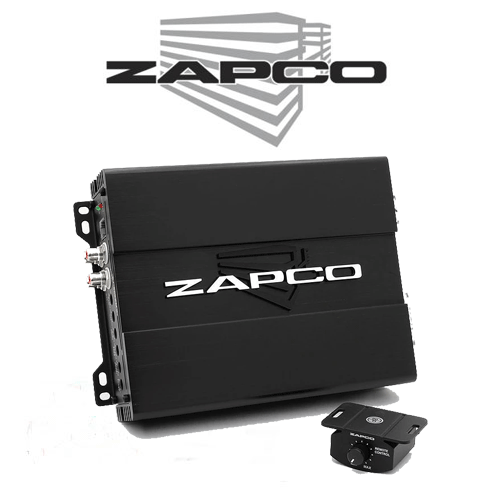

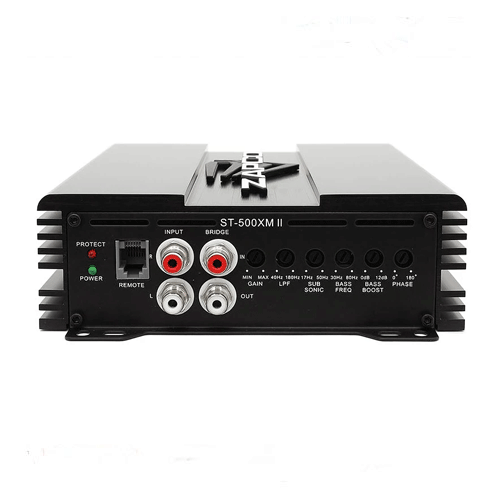

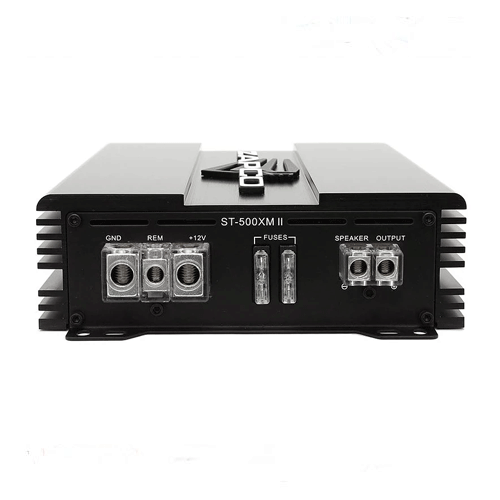

Zapco ST-500XM II Mono Class D Bass Amplifier

Zapco ST-500XM II   Mono Class D Bass Amplifier

Features


• Single-channel, Class D, Bass Amplifier
• Compact chassis
• Variable input gain control
• Variable electronic crossover
• Variable subsonic filter
• Variable bass boost control
• Variable centre frequency for bass boost
• Variable phase control
• Strappable to use a pair of amps on a single voice coil
• Dash-mount remote gain control

Specifications


• Power @ 1Ω: 1 x 500 watts
• THD @ Rated Power < 0.2%THD
• Power @ 2Ω: 1 x 300 watts
• Power @ 4Ω: 1 x 200 watts
• Signal to Noise Ratio > 85dB
• THD + Noise < 0.2%
• Efficiency > 85%
• Frequency Response 10Hz to 200Hz ±1dB
• Input Sensitivity 0.25v to 5v
• Dimensions in mm: 160(W) x 52(H) x 179(L) Overall: 160(W) x 52(H) x 205(L)
