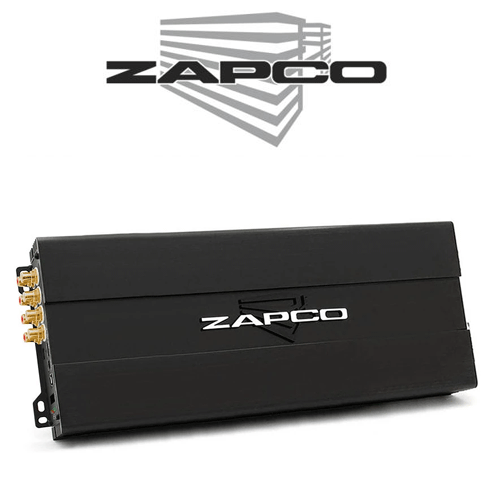

Zapco ST-6X SQ III 6 Ch. Sound Q Class AB Amplifier

Zapco ST-6X DSP (BT)   6 Ch. Class AB Amplifier with DSP

Features and Functions

• 6-Channel, Full Range, Class A/B

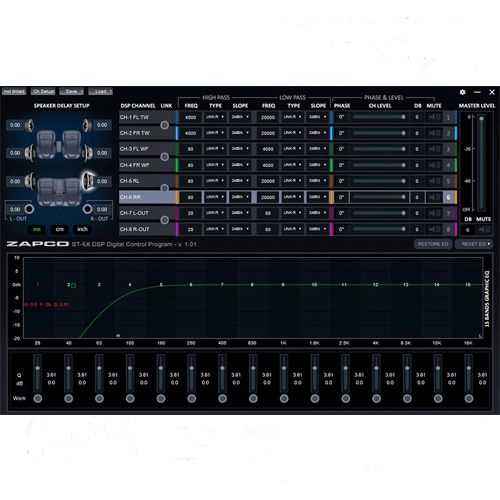

• On-Board, Full Function, 8-ch. Digital Signal Processing

• High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization on each channel

• Optical Digital Input

• BT Streaming: Bluetooth Port for external APTX HD Module (optional)

Specifications

• Power @ 4Ω: 6 x 100 watts

• THD @ Rated Power  < 0.5% THD

• Power @ 2Ω: 6 x 150 watts

• Power Bridged @ 4Ω: 3 x 300W RMS

• Signal to Noise Ratio > 90dB

• THD + Noise < 0.2%

• Channel Separation  >60dB

• Frequency Response 15Hz to 30KHz ±1dB

• Input Sensitivity .25v to 5v

• Dimensions in mm: 160(W) x 52(H) x 452(L) Overall: 160(W) x 52(H) x 488(L)
