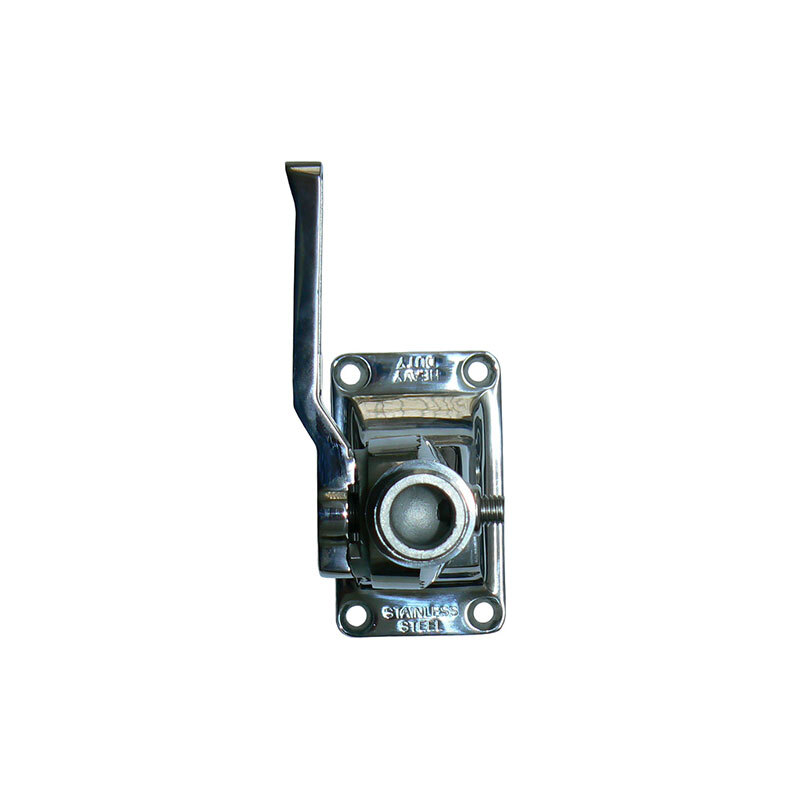

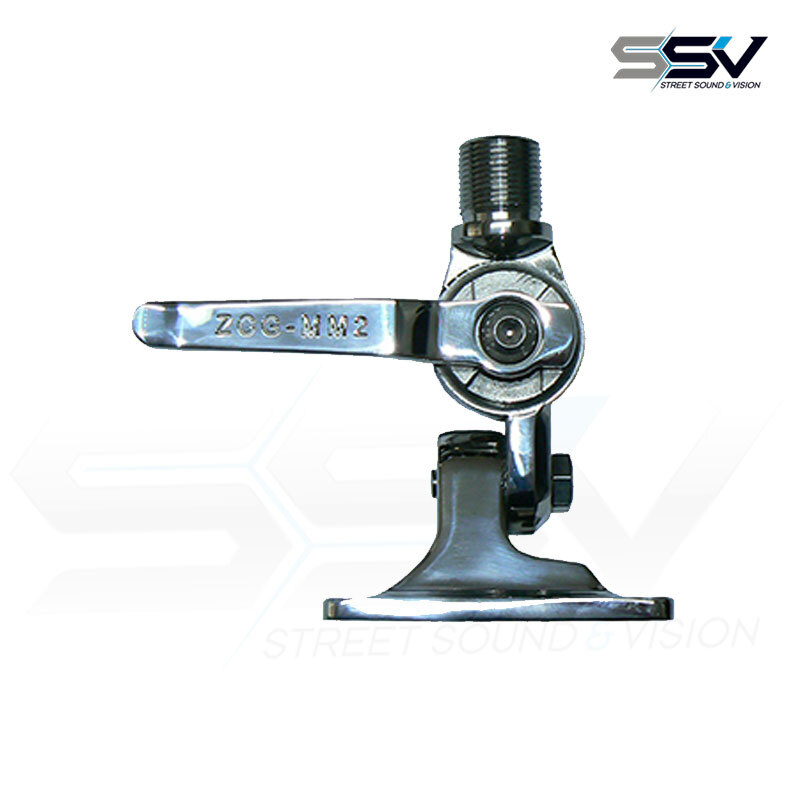

Deck 2-way fold down mount, 316 stainless steel - 1"-14 UNS thread - 61mm x 102mm footprint

PRODUCT CODE: MM2

The MM2 316 stainless steel heavy-duty 2-way fold down deck mount is suitable for all ZCG ZM marine range antennas. The dual-action fold down mount allows mounting to any surface and ensures the optimum vertical polarisation is achievable. Ensure your antenna is mounted in a vertical position when in use, tilting or leaning of your antenna will diminish your antennas performance. Installation tools required: 6mm hex allen key + 16mm spanner.

CONSTRUCTION: 316 grade stainless steel - all components

CONNECTOR: 1"-14UNS male thread at top of base

DIMENSIONS: Height: 145mm, Base footprint: 61mm x 102mm

WEIGHT - KG: 1.25
