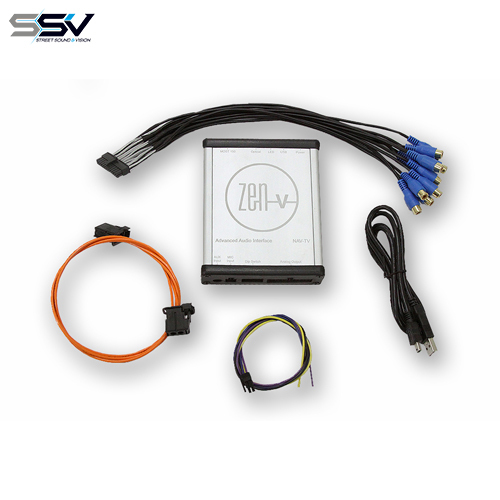

ZEN-V Audio InterfaceTo Suit MOST-150 To Suit some Audi, Bentley, Porsche & VW Vehicles

The ZEN-V allows the seamless addition of aftermarket amplifiers into compatible vehicles, delivering audiophile-quality sound without compromising the vehicle’s factory fit, finish or features.

Utilizing the same processing power as NAV-TV’s competition proven M650-GM, the ZEN-V produces a completely flat audio output without any factory time delay or equalization, eliminating the need for summing devices, an audio correction DSP or the removal of the factory audio compensation microphones. Installation of the interface requires no modification to the vehicle and is compatible with both amplified and non amplified factory systems[1]. Volume, Fade[3], Balance and Bass/Treble tone controls are retained through the factory radio and echo cancellation for the factory Bluetooth hands-free system is supported.

Utilizing a 128 bit floating point DSP and 192 kHz 32 bit DAC, the ZEN-V produces a 12 channel analog output with a S/N Ratio of 112dB. For vehicles with video playback capability, the ZEN-V supports 7.1 and 5.1 audio[2]. The unit provides a 500mA output for controlling aftermarket devices and, additionally, retains the factory equalizer.

For use with 3rd party digital sound processors[3], the ZEN-V includes a variable TOSlink digital output which may be used simultaneously with the analog outputs, or by itself. The variable digital output allows for the system volume to be controlled via the factory radio and steering wheel controls without the need to access any 3rd party controller.
